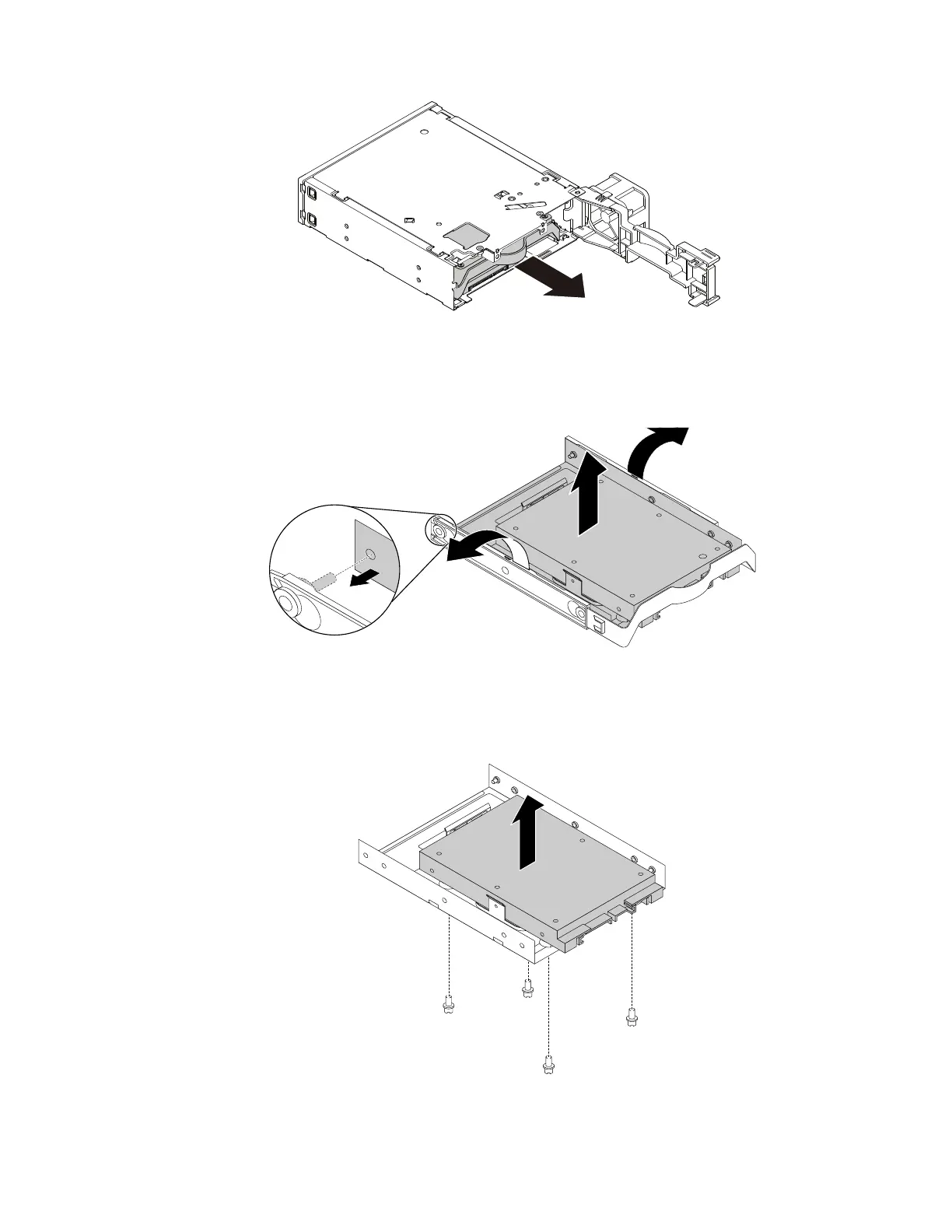

Figure 75. Removing the 2.5-inch storage drive from the rear
b. Flex the sides of the bracket to remove the storage-drive converter from the 3.5-inch storage-drive
bracket.
Figure 76. Removing the storage-drive converter from the 3.5-inch storage-drive bracket
c. Remove the four screws that secure the 2.5-inch storage drive. Then lift the storage drive out of the
storage-drive converter.
Figure 77. Removing the 2.5-inch storage drive from the storage-drive converter
Chapter 9. Hardware removal and installation 129
