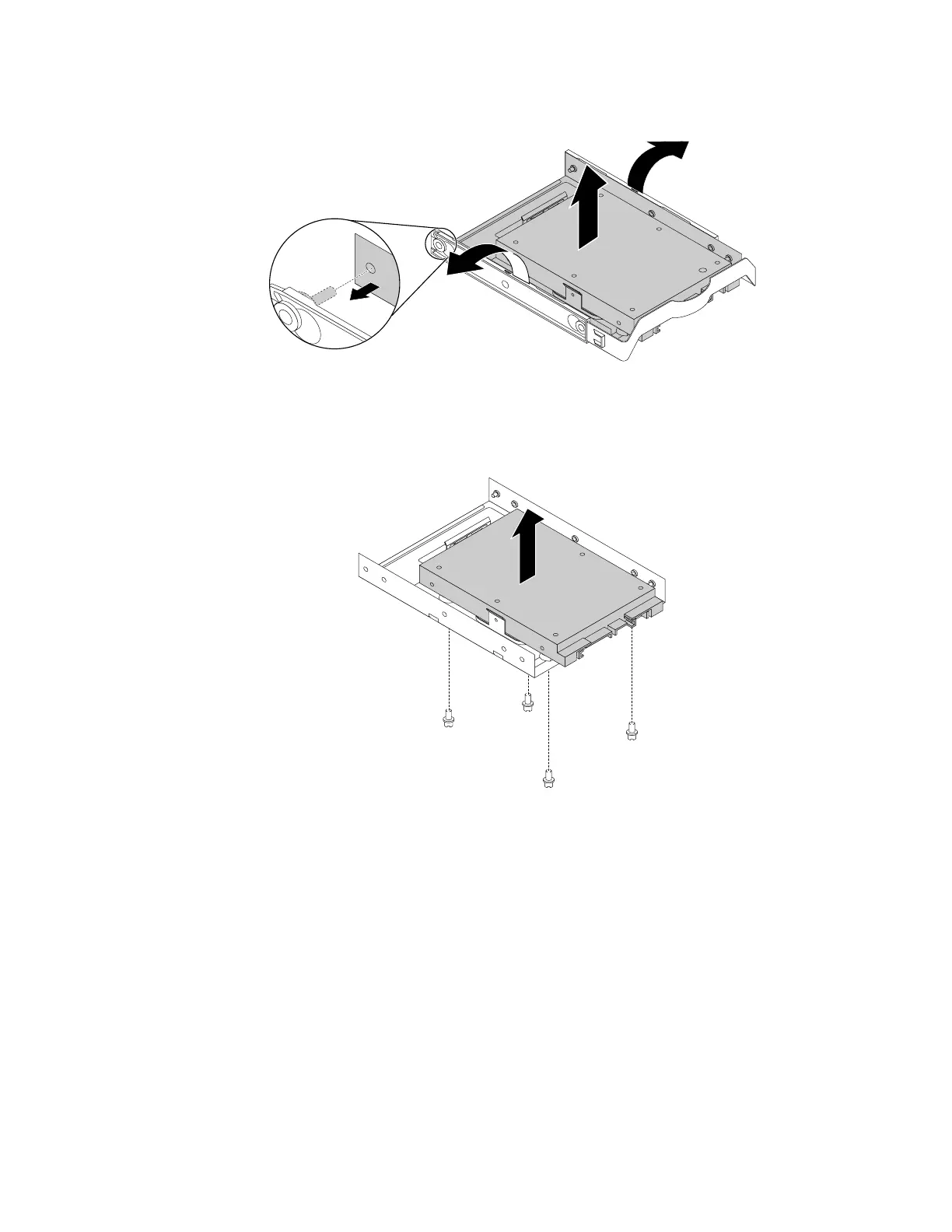

d. Flex the sides of the bracket to remove the storage-drive converter from the bracket.
Figure 103. Removing the storage-drive converter from the storage-drive bracket
e. Remove the four screws that secure the 2.5-inch storage drive. Then lift the storage drive out of the
storage-drive converter.
Figure 104. Removing the 2.5-inch storage drive from the storage-drive converter
4. To install a new 2.5-inch storage drive in the type-1 storage-drive cage, do the following:
Chapter 9. Hardware removal and installation 145
