a. Pull the handle of the retention latch outward to the open position and remove the shield as shown.

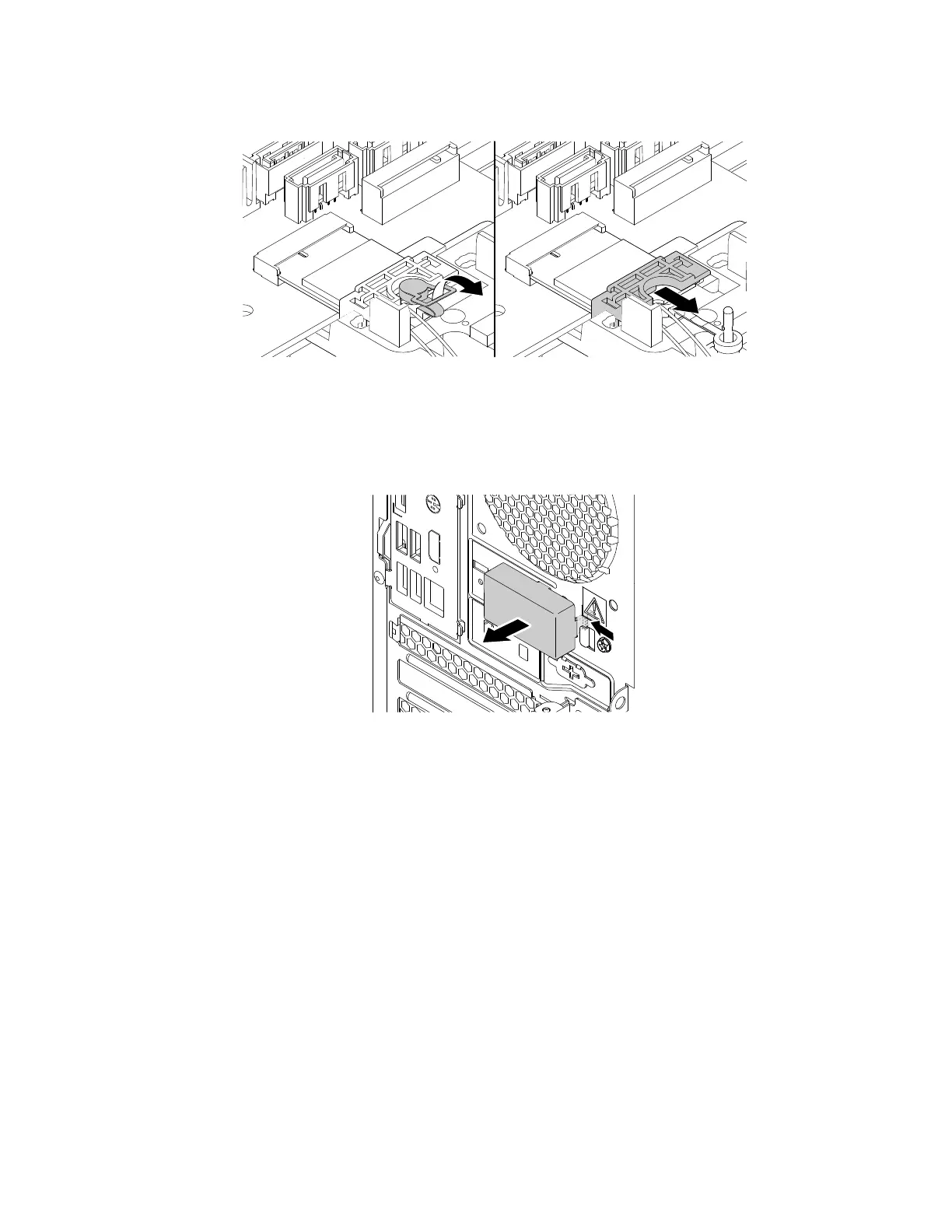

Figure 144. Pulling handle of the retention latch outward and removing the shield
b. Disconnect the rear Wi-Fi antenna cable from the Wi-Fi card module.
c. From the inner side of the chassis, pivot the tab of the shield inward and release the shield from the
chassis.
Figure 145. Removing the shield
