Lenze 8200 vector - Basic units in the power range 45... 55 kW

6
Function module (optional)
Dismounting
EDK82EV113 DE/EN/FR 8.1
L
112

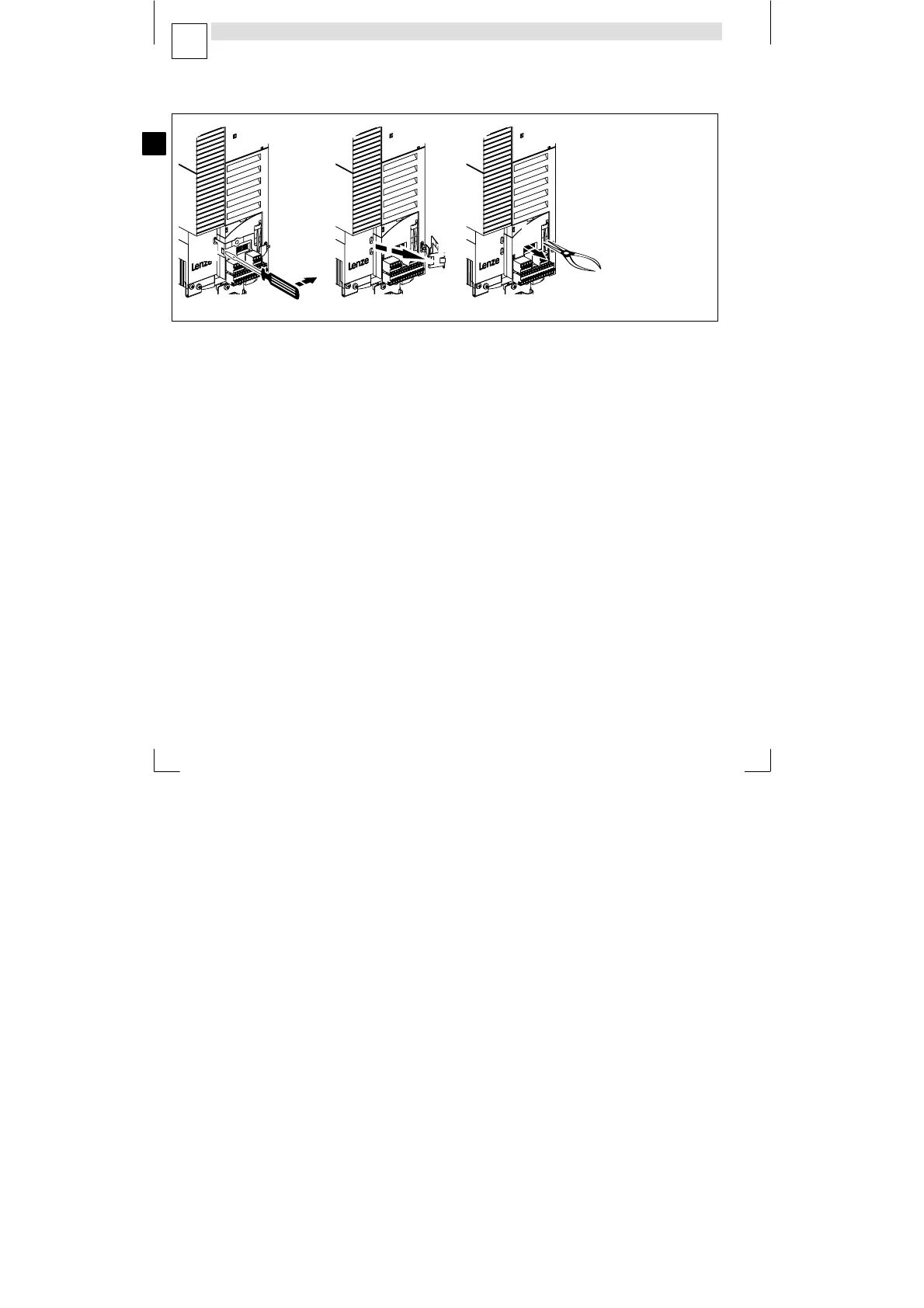

Dismounting of the function module version "PT"
2
1
0



8200vec372
After the function module version "PT" has been switched off, first of all the safety clip must
be removed.
1. Position the screw driver between safety clip and function module . The safety clip
is disengaged by pressing to the right.
2. Turn the safety clip  to the right.
3. Catch the bar of the plug connector with pliers and pull . Plug connector and
function module are dismounted together.
