7
Commissioning
Using the keypad XT EMZ9371BC − Linear V/f characteristic control
EDK82EV113 DE/EN/FR 8.1
L
134
The following instructions apply to controllers equipped with a standard−I/O function
module and a three−phase AC motor which has been selected according to a power−based
assignment.

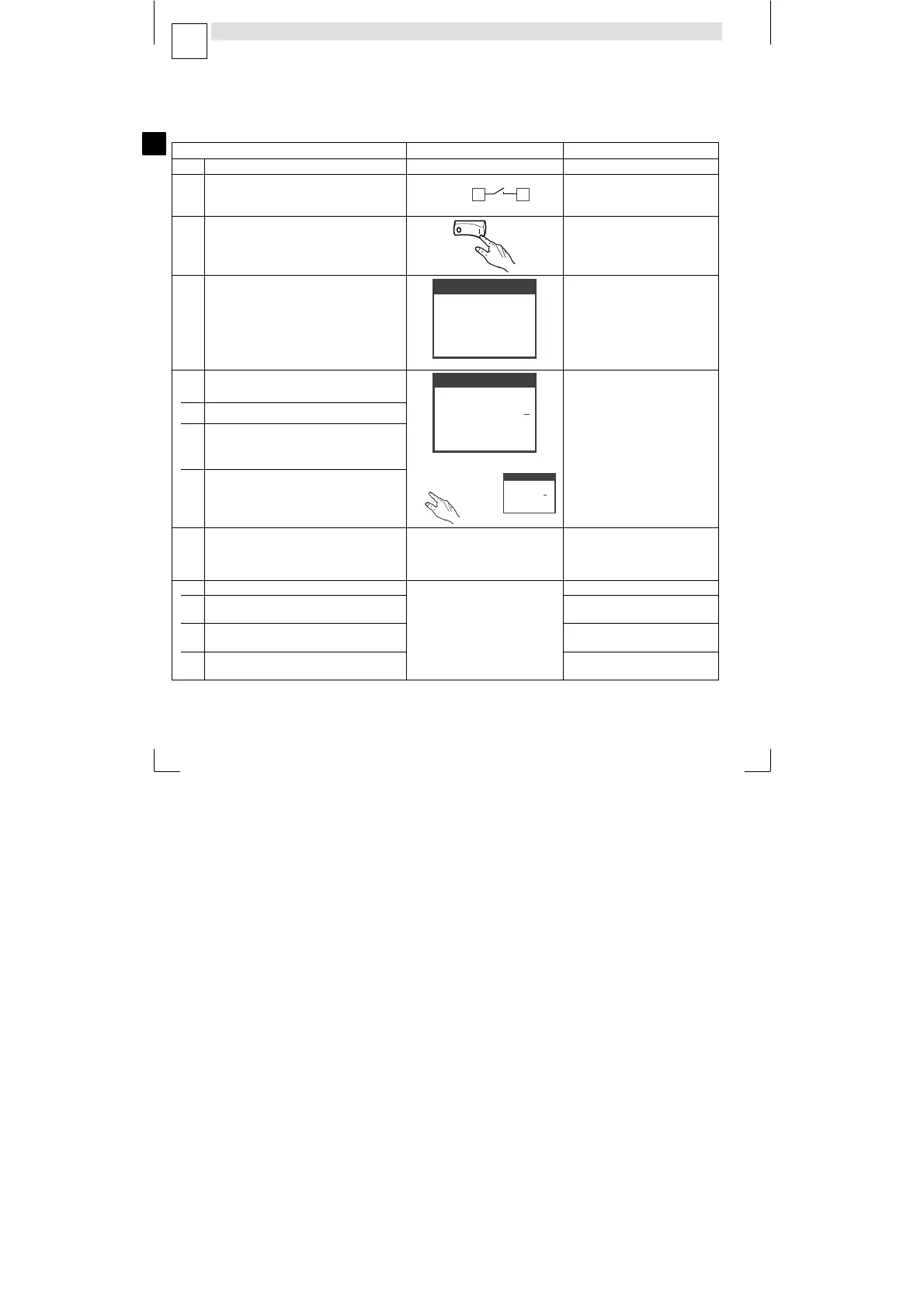

Switch−on sequence Note
1. Attach the keypad
2. Ensure that controller inhibit is active after
mains connection.
misc001
20 28
X3
}
Terminal X3/28 = LOW
3. Switch on the mains
ON
misc002
4. The keypad is in the operation level and
indicates the output frequency (C0050) and
device load (C0056)
9371BC004
d ABbc
0050
00
0.00 Hz
0%
5. For quick commissioning select the menu
"Quick start"
d ABbc
p
SHPRG
Para
Code
Menu
4
2
Quick start
V/f quick
9371BC007
The submenu "V/f quick" contains
the codes you need for the
commissioning of a standard
application. The digital inputs are
configurated in the Lenze setting:
X3/E1, X3/E2:
Activation of JOG setpoints
X3/E3:
Activation of DC−injection brake
(DCB)
X3/E4:
CW rotation/CCW rotation
A
Change to the menu level with 
B Change to the menu "Quick start" and there
select the submenu "V/f quick" with

C Change to the code level in order to
parameterise you drive with

YZ
y
z
T V
S U
d ABbc
p
SHPRG
Para
Code
Menu
0034
00
0
AIN1 range
9371BC008
6. Adapt the voltage range/current range to the
analog setpoint (C0034)
Lenze setting: 0, (0 ... 5 V/0 ... 10 V/0 ... 20 mA)
Set the DIP switch on the
standard I/O to the same range (see
Mounting Instructions for the
standard I/O)
7. If necessary, adapt the JOG setpoints.
A JOG 1 (C0037)
Lenze setting: 20 Hz
Activation:
X3/E1 = HIGH, X3/E2 = LOW
B JOG 2 (C0038)
Lenze setting: 30 Hz
Activation:
X3/E1 = LOW, X3/E2 = HIGH
C JOG 3 (C0039)
Lenze setting: 40 Hz
Activation:
X3/E1 = HIGH, X3/E2 = HIGH
