Lenze 8200 vector - Mains Connection 230 V;240 V

Electrical installation
Mains connection 230 V/240 V
3
EDK82EV113 DE/EN/FR 8.1
99
L
( Stop!
l Controller type E82EVxxxK 2C must only be connected to a mains voltage
of 3/PE AC 100 ... 264 V. Higher mains voltages will destroy the controller!
l The discharge current to PE is > 3.5 mA. EN 50178 requires a fixed
installation. Double PE connection required.

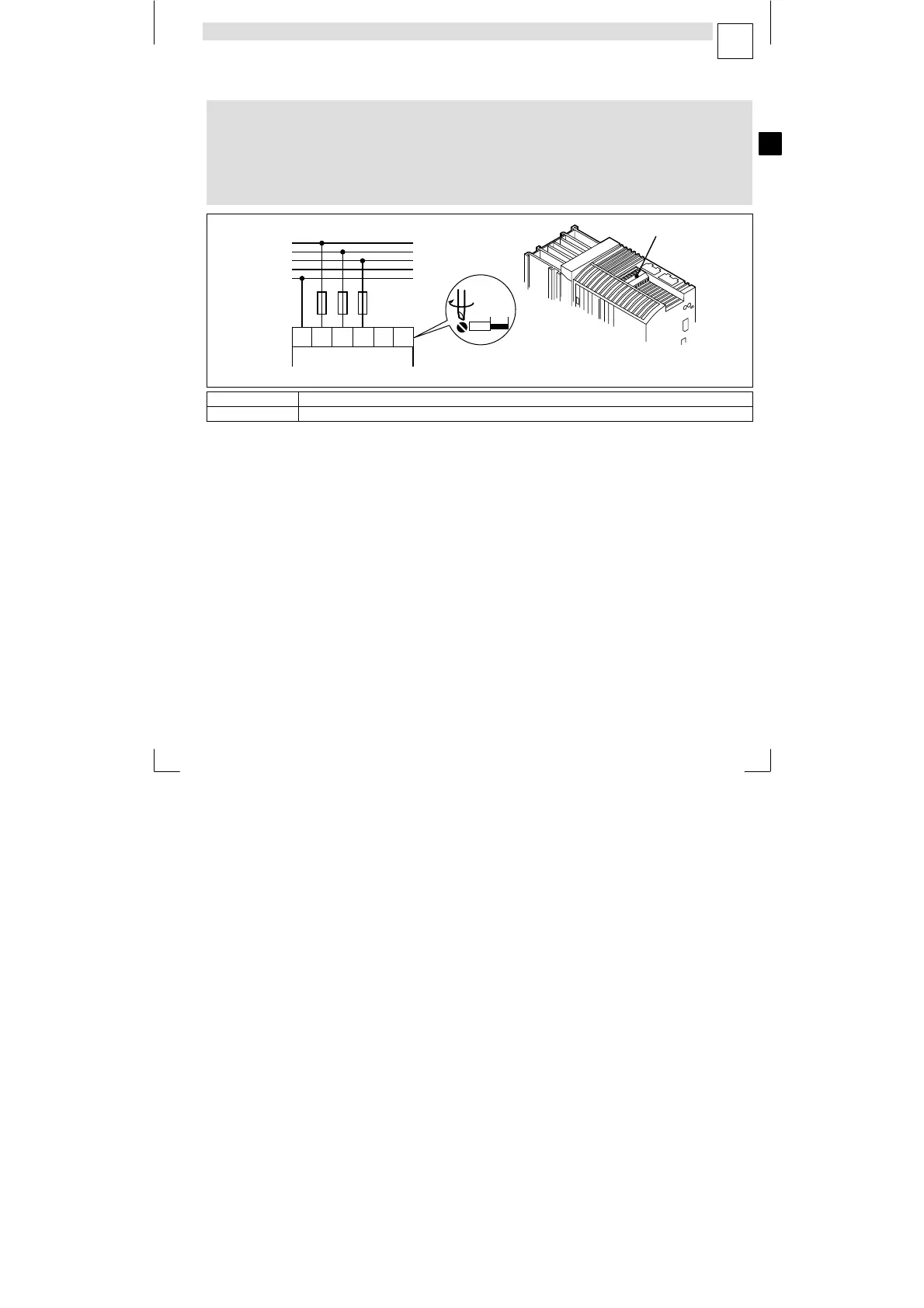

X1.1
3 PE AC 230/240 V
45Hz -0%...65Hz +0% 100 V -0%...264 V +0%
X1.1
PE L1
L3
+UG -UG
L2
E82EVXXXK C2
L1
L2
L3
N
PE
0,7...0,8 Nm
6.2...7.1 lb-in
6 mm / 0.24 in
−22− 8200vec065
E82EV752K2C Operation only with mains choke
X1.1/+UG, X1.1/−UG DC supply (DC−bus operation − see Operating Instructions)
