Process data transfer
Port interconnection of process data objects (PDO)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

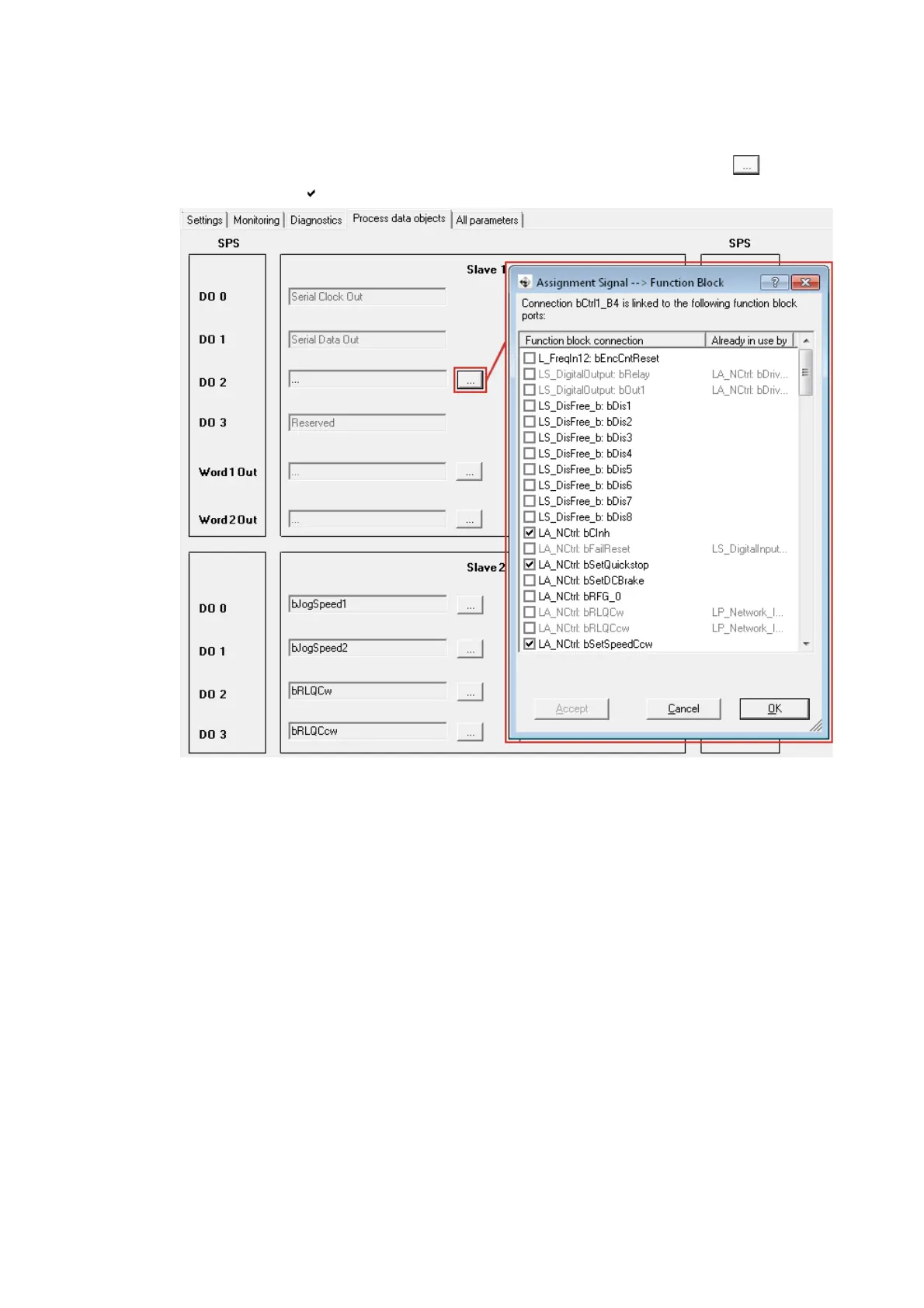

3. Open the "Assignment Signal --> Function Block" dialog window using the buttons.
Here, tick (
) the signals that are sent from the PLC (AS-i master) to the inverter.
4. Confirm the selection with OK.
