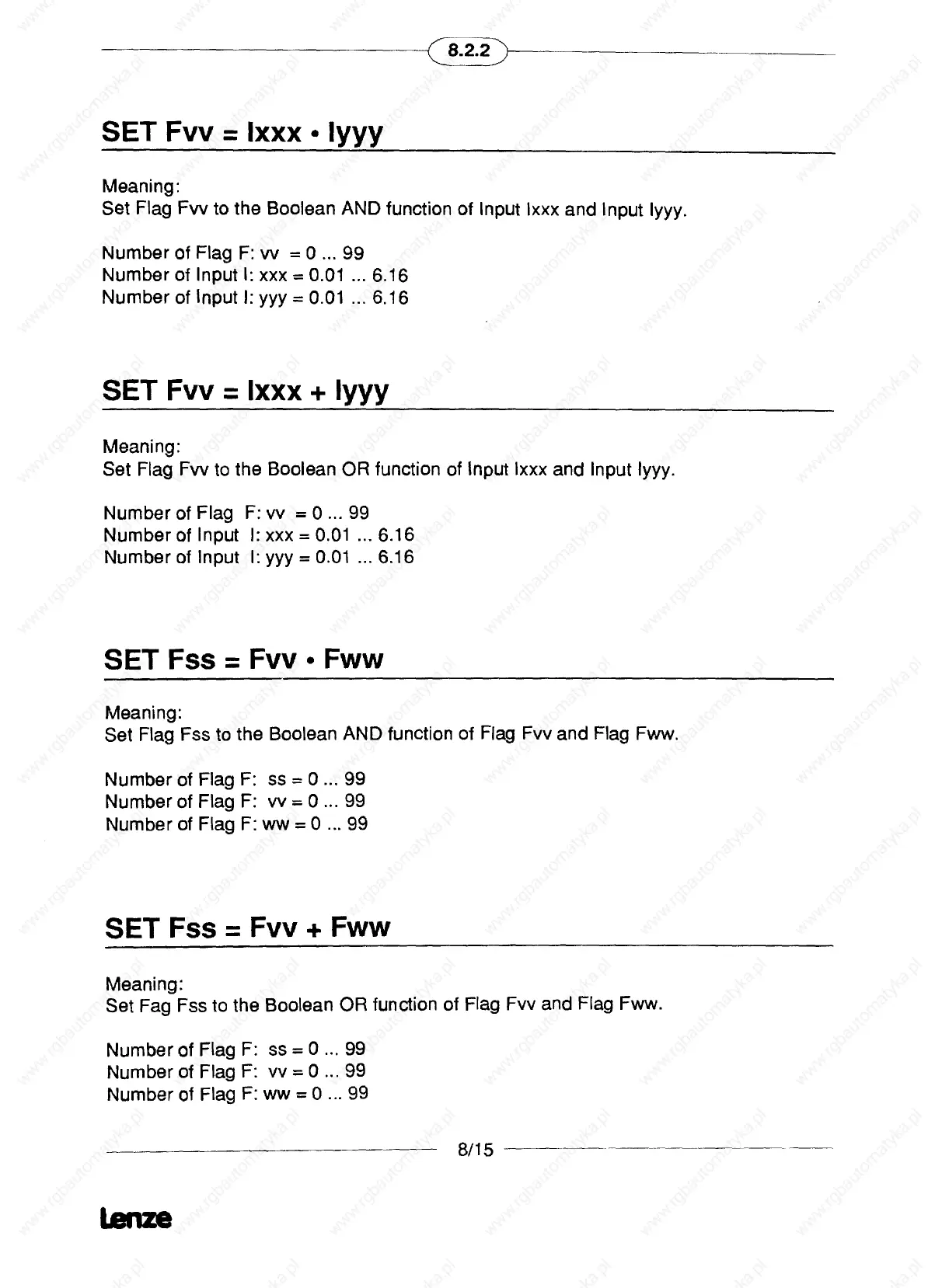

Lenze SX-1 - Flag Logic Instructions

8.2.2w
SET Fvv = lxxx. lyyy
Meaning:
Set Flag Fw to the Boolean AND function ot Input lxxx and Input lyyy.
NumberotFlagF:w =0...99
Number ot Input 1: xxx = 0.01 ... 6.16
Numberotlnputl:yyy=0.01 ... 6.16
SET Fvv = lxxx + lyyy
Meaning:
Set Flag Fw to the Boolean OR tunction ot Input lxxx and Input lyyy.
Number ot Flag
Number ot Input
Number ot Input
F:vv=0...99
1: xxx = 0.01 ... 6.16
l:yyy=0.01 ... 6.16
SET Fss = Fvv • Fww
Meaning:
Set Flag Fss to the Boolean AND tunction ot Flag Fvv and Flag Fww.
NumberofFlagF: ss=0... 99
NumberotFlagF: vv=0... 99
NumberotFlagF:ww=0...99
SET Fss = Fvv + Fww
Meaning:
Set Fag Fss to the Boolean OR tunction ot Flag Fvv and Flag Fww.
NumberotFlagF: ss=0... 99
NumberofFlagF: vv=0...99
Number of Flag F: ww = 0 ... 99
8/15
Lanze
