5.3.4

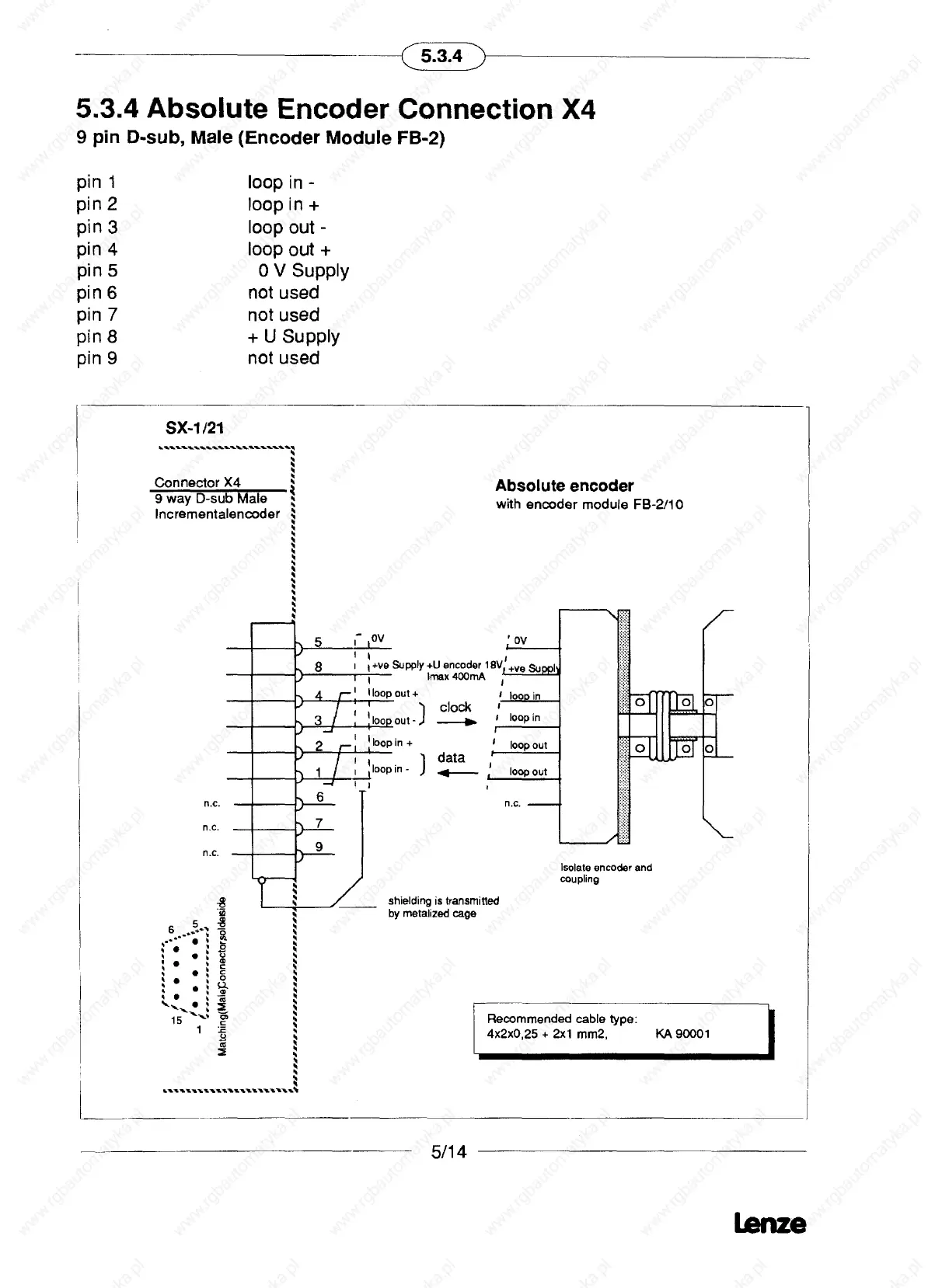

5.3~4 Absolute Encoder Connection X4
9 pin D-sub, Male (Encoder Module FB-2)
loop in -
loop in +
Ioop out -
loop out +
0 V Supply
not used
not used
+ U Supply
not used
pin 1
pin 2
pin 3
pin 4
pin 5
pin 6
pin 7
pin 8
pin 9
SX-1/21
Inc rementalencoder
n.c.
n.c.
-8
~• •~ ~
~• •~ ~
je
•
1~‘~• •~
1 :a
0
Absolute encoder
with encoder module FB-2/1 0
Recommended cable type:
4x2x0,25 + 2x1 mm2, KA 90001
5/14
Lenze
n.c.
Isolate encOder and
coupling
______ shielding is transmitted
by metalized cage
