5.3.4/x

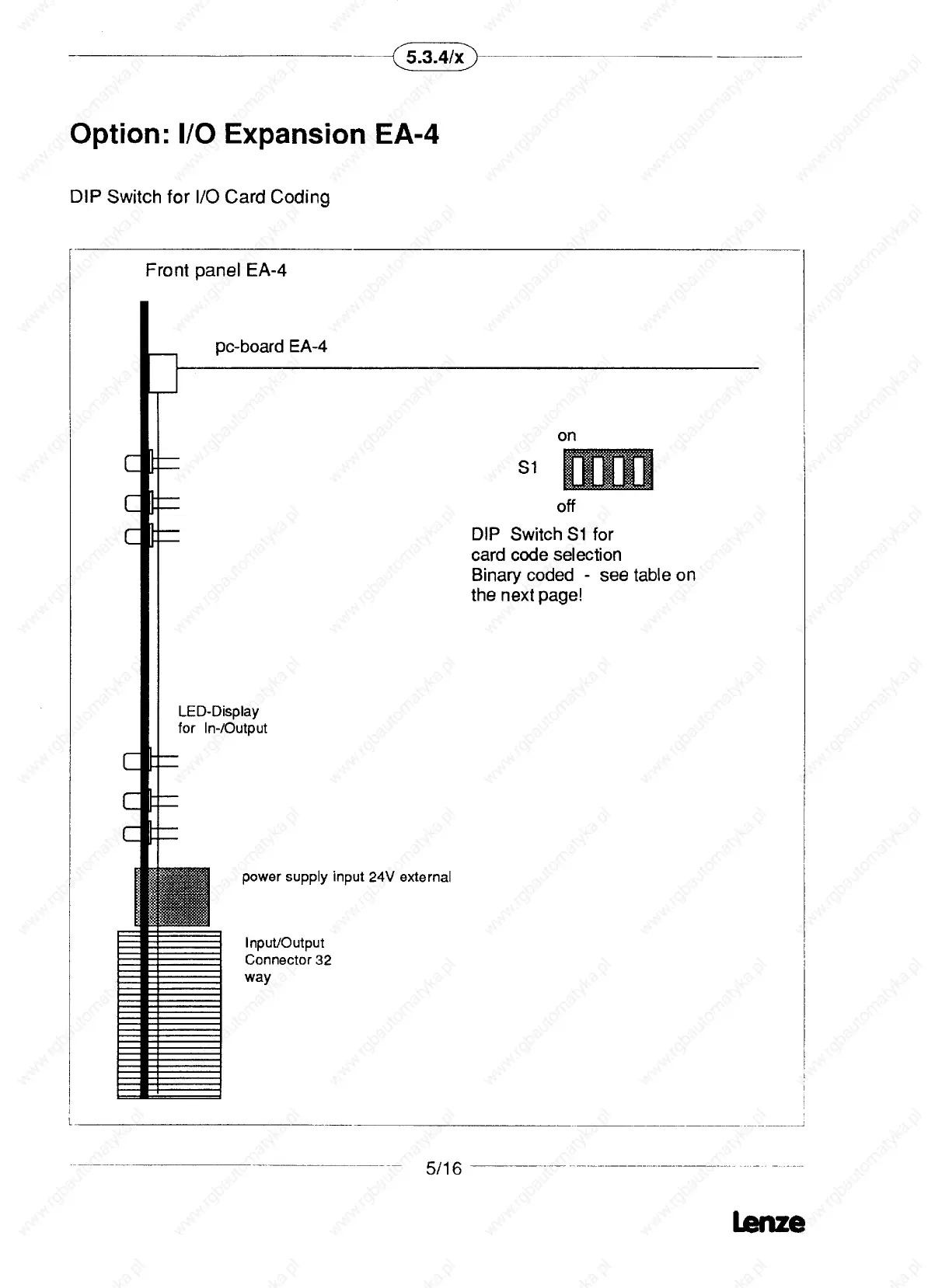

Option: I/O Expansion EA-4
DIP Switch for I/O Card Coding
Front panel EA-4
pc-board EA-4
~1
on
S1
off
DIP Switch S1 for
card code selection
Binary coded - see table on
the next page!
LED-Display
tor In-/Output
power supply input 24V externai
lnputlOutput
Connector 32
way
5/16
ci
ci
ci
ci
ci
ci
F
