Lenze SX-1 - Mode Selection Inputs

6.2

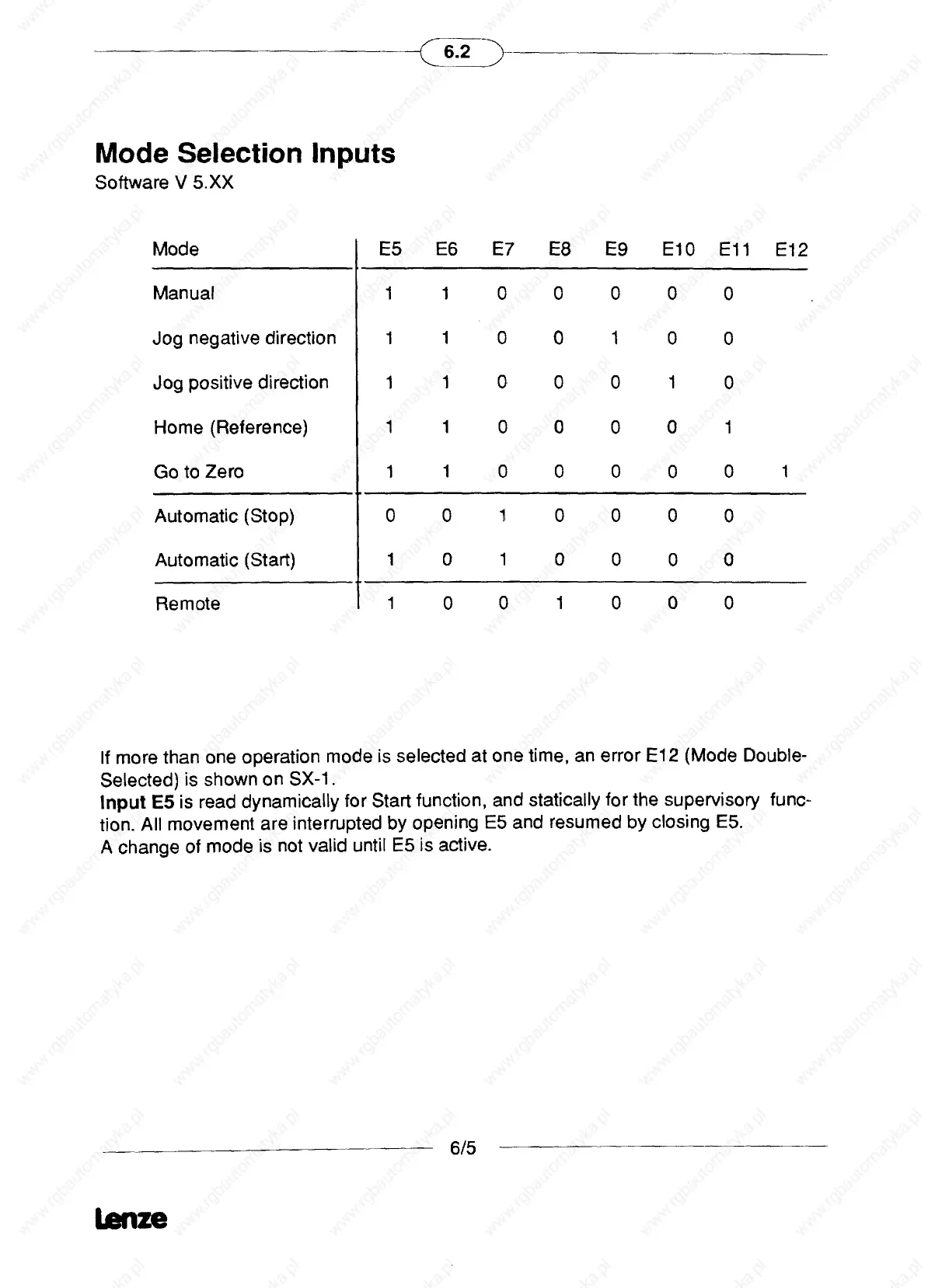

Mode Selection lnputs
Software V 5.XX
Mode
Manual
Jog negative direction
Jog positive direction
Home (ReferenCe)
Go to Zero
ES E6 E7 E8 E9 E1O Eh E12
1 1 0 0 0 0 0
1 1 0 0 1 0 0
1 1 0 0 0 1 0
1 1 0 0 0 0 1
1 1 0 0 0 0 0
Automatic (Stop) 0 0 1 0 0 0 0
Automatic (Start) 1 0 1 0 0 0 0
Rem ote 1 0 0 1 0 0 0
1
If more than one operation mode is selected at one time, an error El 2 (Mode Double -
Selected) is shown on SX-1.
Input E5 is read dynamically for Start function, and statically for the supervisory func -
tion. All movement are interrupted by opening E5 and resumed by closing E5.
A change of mode is not valid until ES is active.
6/5
Lanze
