Technical data of BPS 34
18 BPS 34 Leuze electronic

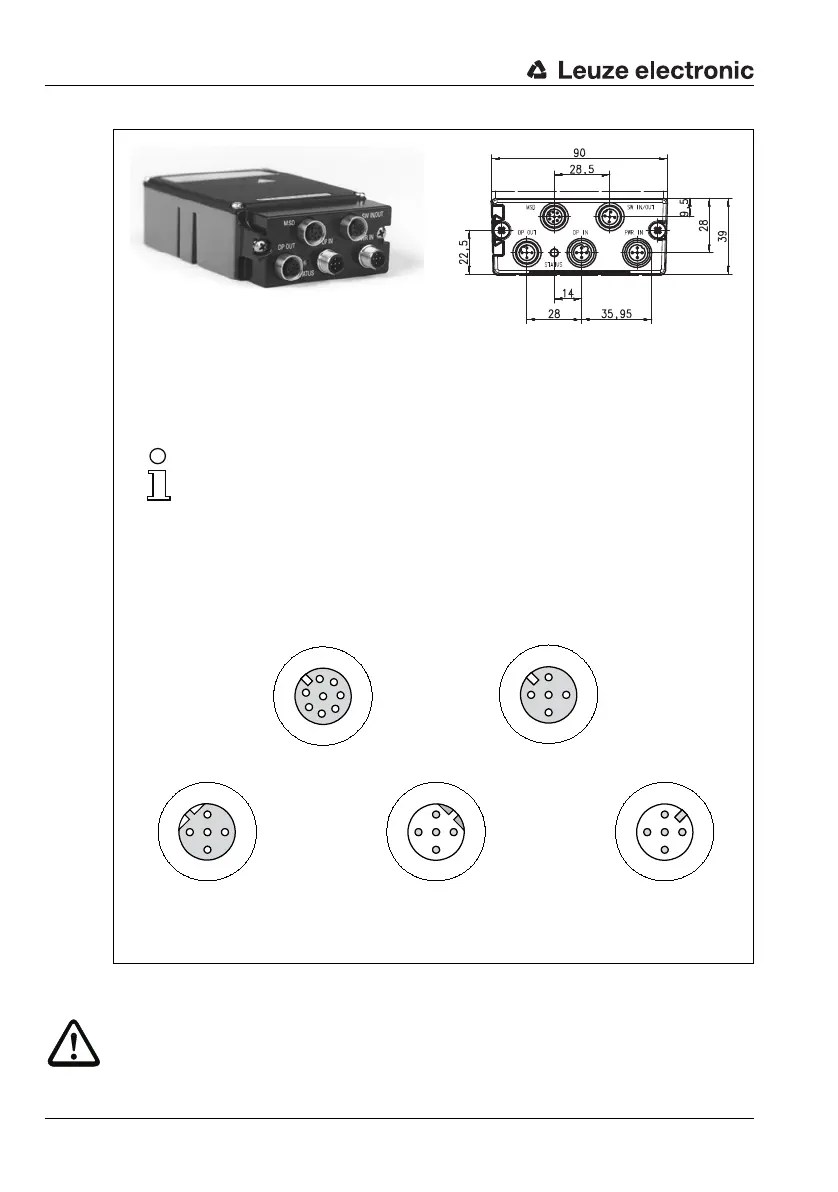

Figure 4.3:Pin assignment of the BPS 34 with MS 34 103 / MS 34 105
Attention!
Degree of protection IP 65 is achieved only if the connectors and caps are screwed into
place!
PWR IN = voltage supply
DP IN = PROFIBUS IN
DP OUT = PROFIBUS OUT
MSD = modular service display (MS 34 105 only)
SW IN/OUT = switching input/output (MS 34 105 only)
Note!
The MSD and SW IN/OUT
connections are sealed with caps upon delivery.
Socket
(A-coded)
Socket
(A-coded)
Socket
(B-coded)
Plug
(B-coded)
Plug
(A-coded)
1
2
3
4
DP IN
SW IN/OUT
PWR IN
1
2
3
4
VOUT
SWIN
GND
SWOUT
PE
3
2
1
4
GND VIN
PE
DP OUT
MSD
SWIN
SWOUT
3
2
1
4
GND
VCC
PE
1
2
3
4
A (N)
B (P)
A (N)
B (P)
VCCGND
PE
5
6
7
/SERV
VIN
TXD
RXD
SCL
SDA
GND
/INT
