Leuze electronic BPS 34 - DP in - PROFIBUS DP Incoming; DP out - PROFIBUS DP Outgoing

Technical data of BPS 34
20 BPS 34 Leuze electronic

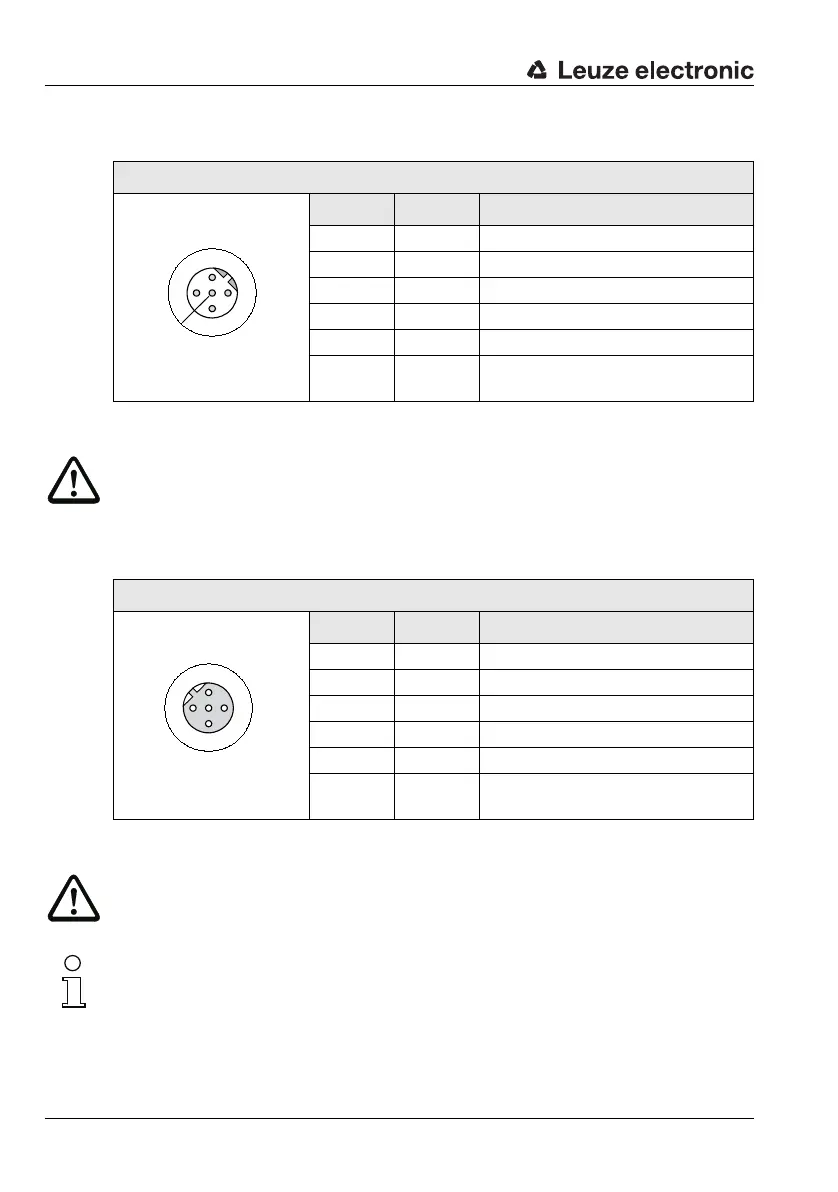

4.3.2 DP IN - PROFIBUS DP incoming
Figure 4.5:Pin assignment - DP IN
Attention!
Degree of protection IP 65 is achieved only if the connectors and caps are screwed into
place!
4.3.3 DP OUT - PROFIBUS DP outgoing
Figure 4.6:Pin assignment - DP IN
Attention!
Degree of protection IP 65 is achieved only if the connectors and caps are screwed into
place!
Note!
If the PROFIBUS is not connected to another participant via the MS 34 10x, the DP OUT
connection must be fitted with a TS 02-4-SA terminator plug for the purpose of bus termina-
tion. For further information, see also Chapter 10.4 on Page 95.
DP IN (5-pin plug, B-coded)
Pin Name Comment
1VCC5VDC for bus termination
2A (N)Receive/transmit data A-line (N)
3GNDFunctional earth for bus termination
4B (P)Receive/transmit data B-line (P)
5PEFunctional earth
Thread PE Functional earth (housing)
DP IN
GND
3
2
1
4
PE
A (N)
B (P)
VCC
M12 plug
(B-coded)
DPOUT (5-pin socket, B-coded)
Pin Name Comment
1VCC5VDC for bus termination
2A (N)Receive/transmit data A-line (N)
3GNDFunctional earth for bus termination
4B (P)Receive/transmit data B-line (P)
5PEFunctional earth
Thread PE Functional earth (housing)
DP OUT
VCC
1
2
3
4
A (N)
B (P)
GND
PE
M12 socket
(B-coded)
