MS 34 … / MSD 1 101 connection units
24 BPS 34 Leuze electronic
5.1.3 Dimensioned drawings

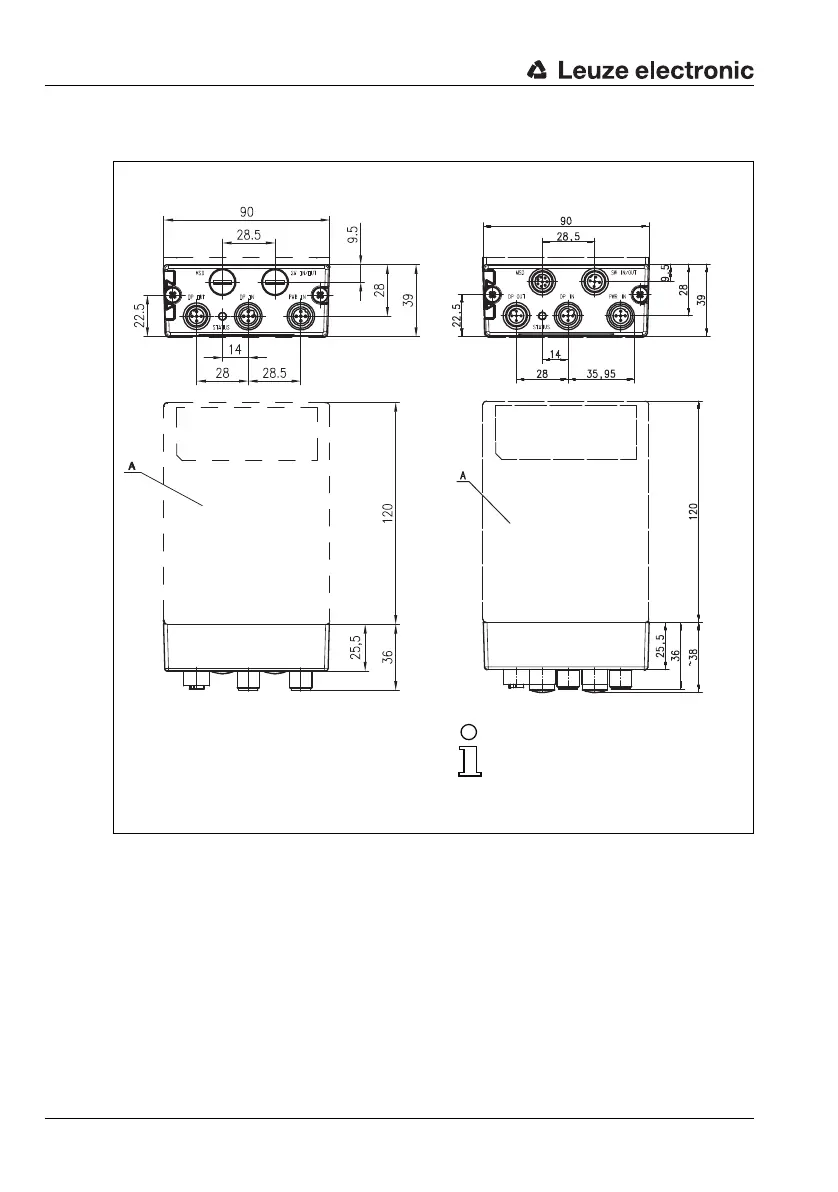

Figure 5.1:Dimensioned drawing MS 34 103 / MS 34 105
MS 34 105MS 34 103
A = BPS 34
all dimensions in mm
Note!
The MSD and SW IN/OUT
connections are sealed with caps
upon delivery.
