Type overview and accessories
96 BPS 34 Leuze electronic

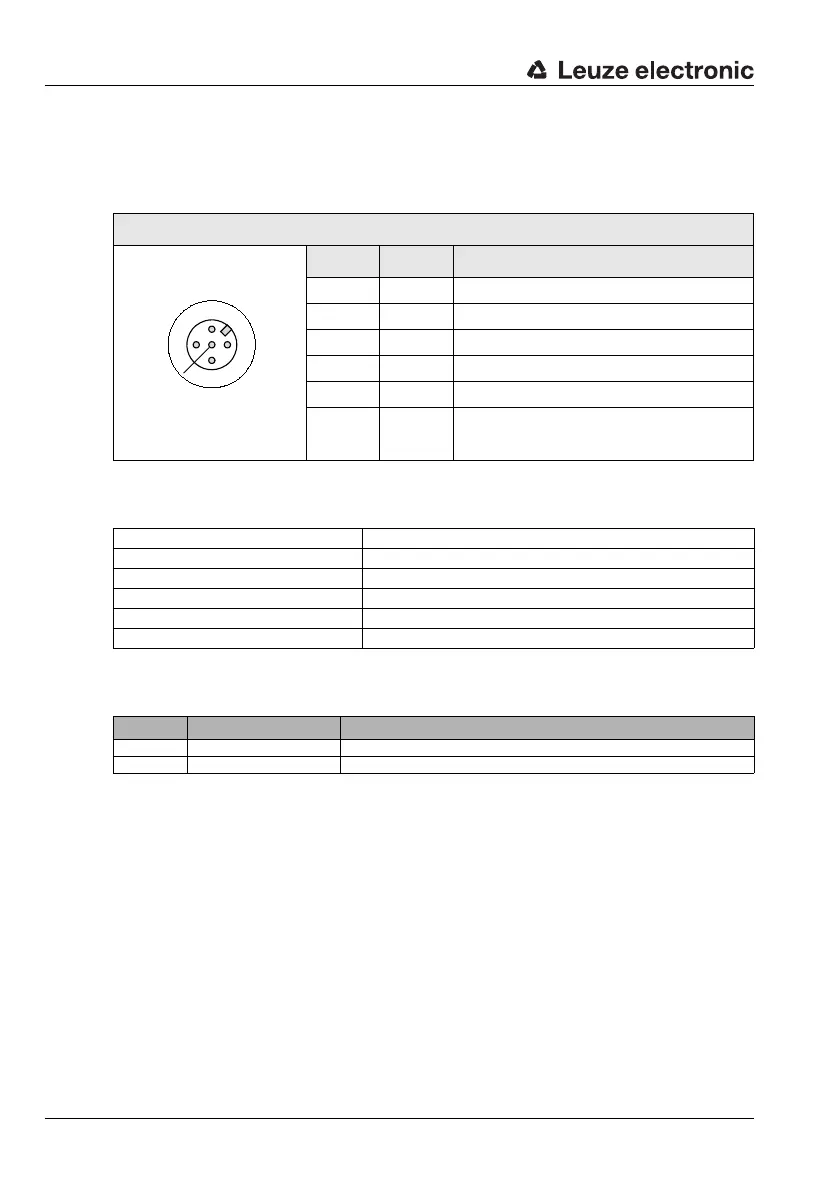

10.7 Accessories - Ready-made cables for voltage supply
10.7.1 Contact assignment of PWR IN connection cable
10.7.2 Technical data of voltage supply cable
10.7.3 Order codes for voltage supply cables
PWR connection cable (5-pin socket, A-coded)
Pin Name Core color
1VIN Brown
2SWOUT White
3GND Blue
4SWIN Black
5PE Gray
Thread PE Bare
PWR IN
SWIN
SWOUT
3
2
1
4
GND VIN
PE
M12 socket
(A-coded)
Operating temperature range In idle state: -30°C … +70°C
In motion: -5°C … +70°C
Material Sheathing: PVC
Bending radius > 50 mm
Part no. Type designation Comment
50104557 K-D M12A-5P-5m-PVC M12 socket for PWR IN, axial plug outlet, open cable end, cable length 5m
50104559 K-D M12A-5P-10m-PVC M12 socket for PWR IN, axial plug outlet, open cable end, cable length 10m
