MS 34 … / MSD 1 101 connection units
Leuze electronic BPS 34 27
TNT 35/7-24V

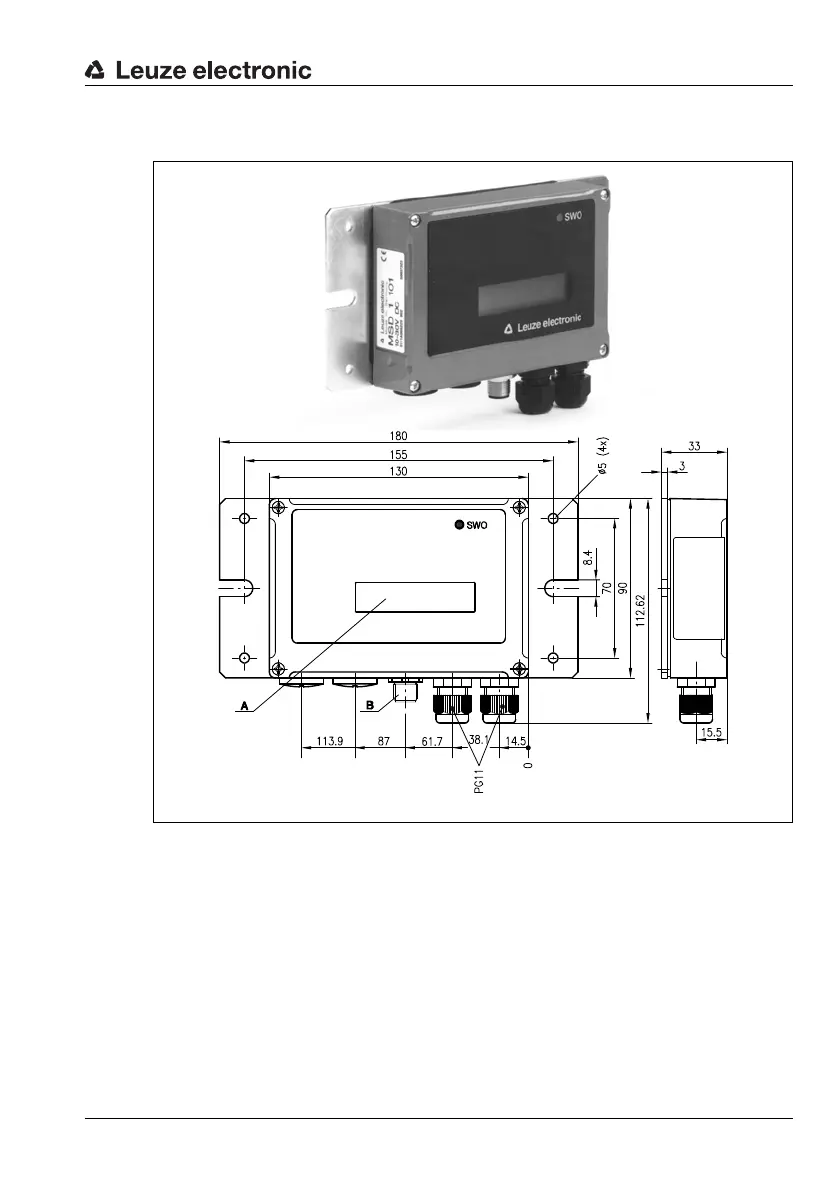

5.2.2 Dimensioned drawing
Figure 5.2:MSD 1 101 modular service display
5.2.3 Electrical connection
MSD 1 101
The connection between the MSD 1 101 and the MS 34 105 is established via the ready-
made cable KB 034 2000. The service interface for connecting a PC is located inside the
MSD 1 101 and is designed as a 9-pin sub-D connector. The pin configuration of the 9-pin
sub-D connector corresponds to a standard RS 232 interface:
• PIN 2 = RxD
• PIN 3 = TxD
• PIN 5 = GND
A LED indicator
B M12 device plug, 8-pin, for connecting to the MS 34 105
