10.8 Accessories - Ready-made cables for PROFIBUS connection
10.8.1 General
•Cable KB PB… for connecting to the DP IN/DP OUT M12 connector
• Standard cables available in lengths from 2 … 30m
• Special cables on request.
10.8.2 Contact assignment for PROFIBUS connection cable KB PB…

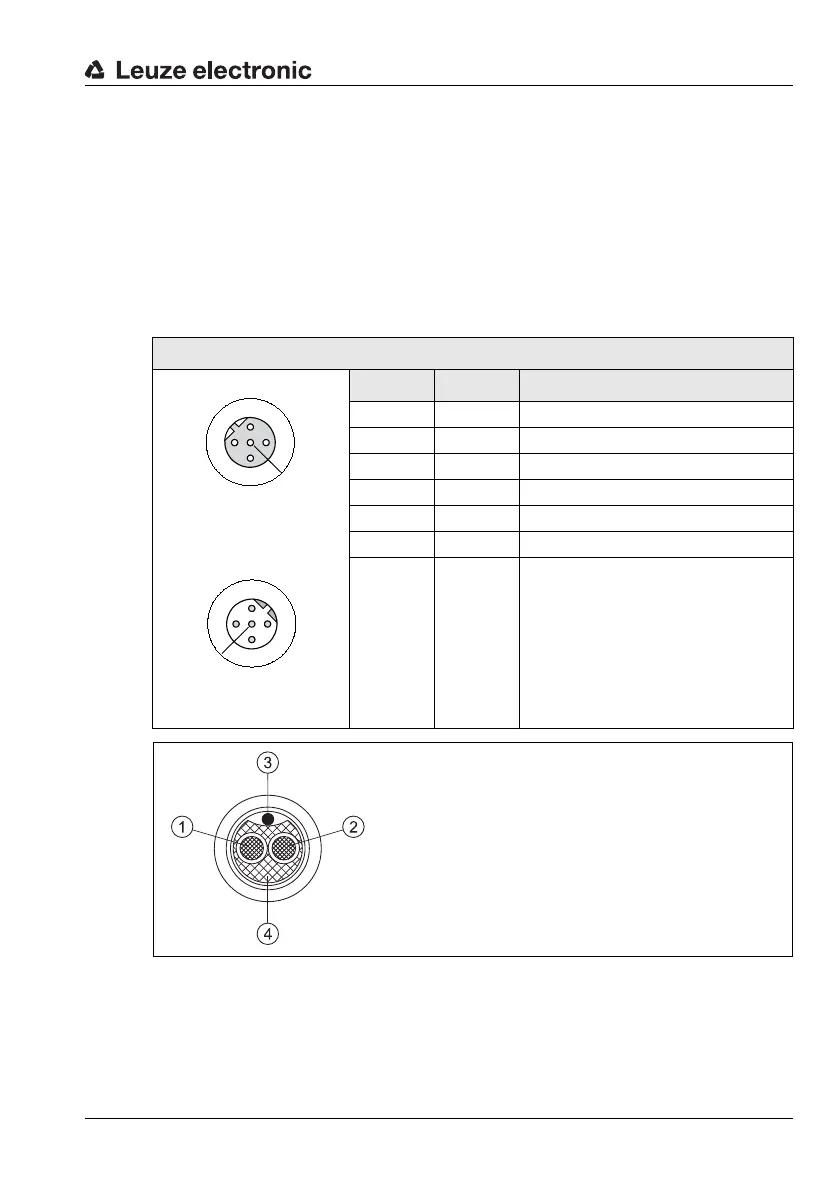

Bild 10.1:Cable structure of PROFIBUS connection cable
PROFIBUS connection cable (5-pin socket/connector, B-coded)
Pin Name Core color
1N.C. –
2A (N) Green
3N.C. –
4B (P) Red
5N.C. –
Thread FE Bare
N.C.
3
2
1
4
N.C.
A (N)
B (P)
N.C.
N.C.
1
2
3
4
A (N)
B (P)
N.C.
N.C.
M12 socket
(B-coded)
M12 plug
(B-coded)
1 Conductor with insulation red
2 Conductor with insulation green
3 Drain wire
4 Fibrous fleece
