Device parameters and interfaces
44 BPS 34 Leuze electronic
DP IN - PROFIBUS DP incoming

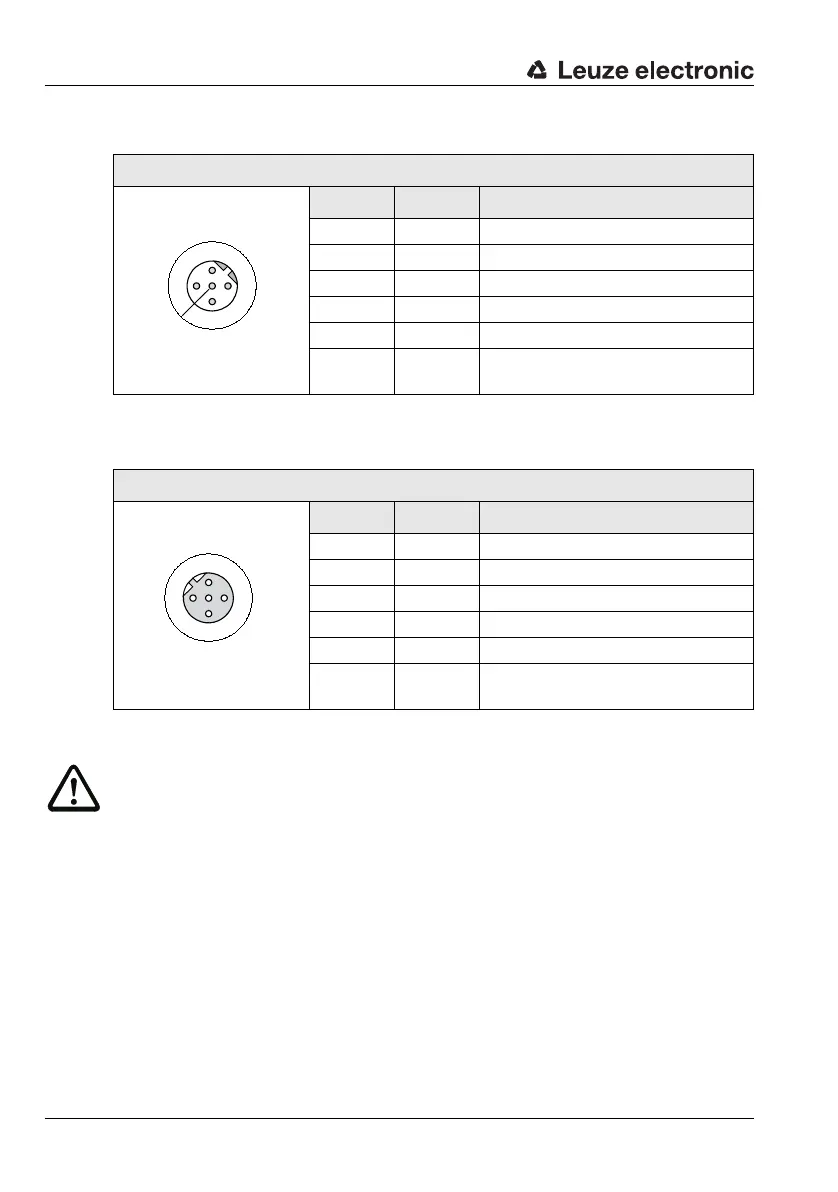

Figure 8.2:Pin assignment - DP IN
DP OUT - PROFIBUS DP outgoing
Figure 8.3:Pin assignment - DP IN
Attention!
Degree of protection IP 65 is achieved only if the connectors and caps are screwed into
place!
DP IN (5-pin plug, B-coded)
Pin Name Comment
1VCC5VDC for bus termination
2A (N)Receive/transmit data A-line (N)
3GNDFunctional earth for bus termination
4B (P)Receive/transmit data B-line (P)
5PEFunctional earth
Thread PE Functional earth (housing)
DPOUT (5-pin socket, B-coded)
Pin Name Comment
1VCC5VDC for bus termination
2A (N)Receive/transmit data A-line (N)
3GNDFunctional earth for bus termination
4B (P)Receive/transmit data B-line (P)
5PEFunctional earth
Thread PE Functional earth (housing)
DP IN
GND
3
2
1
4
PE
A (N)
B (P)
VCC
M12 plug
(B-coded)
DP OUT
VCC
1
2
3
4
A (N)
B (P)
GND
PE
M12 socket
(B-coded)
