3.1 System
3.1.1 System > System
WAB-7400 is a layer 2 mesh network that supports gateway and relay operation mode.

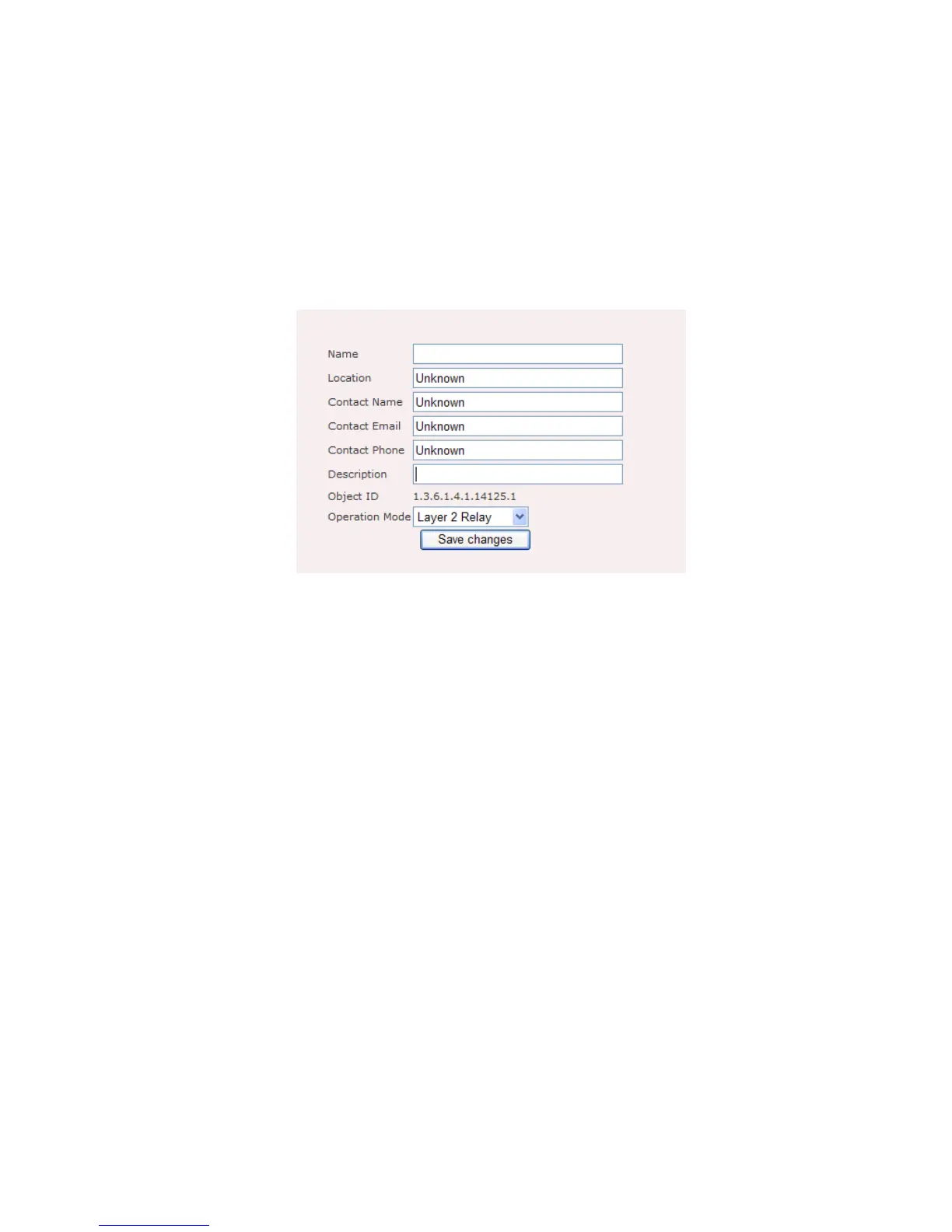

Figure 4.1.1 illustrates the system information configuration page.
Figure 4.1.1: System Information Configuration page
System Information Configuration page contains the following parameters:
 Name: Name of the device.
 Location: Location name that device located.
 Contact Name: Name of the contact person for consulting about the device.
 Contact Email: Email address of the contact person.
 Contact Phone: Phone number of the contact person.
 Description: Description of the device.
 Object ID: Display SNMP MIB object identification (OID) of the device.
 Operation Mode: Type of operation mode such as “Layer 2 Gateway” &
“ Layer 2 Relay”
 “Save Changes” button to save any changes made. New settings are active
after the device reboot.
