3.8 Tools
3.8.1 Tools > Ping
Figure 11.1.1 illustrates the ping page.

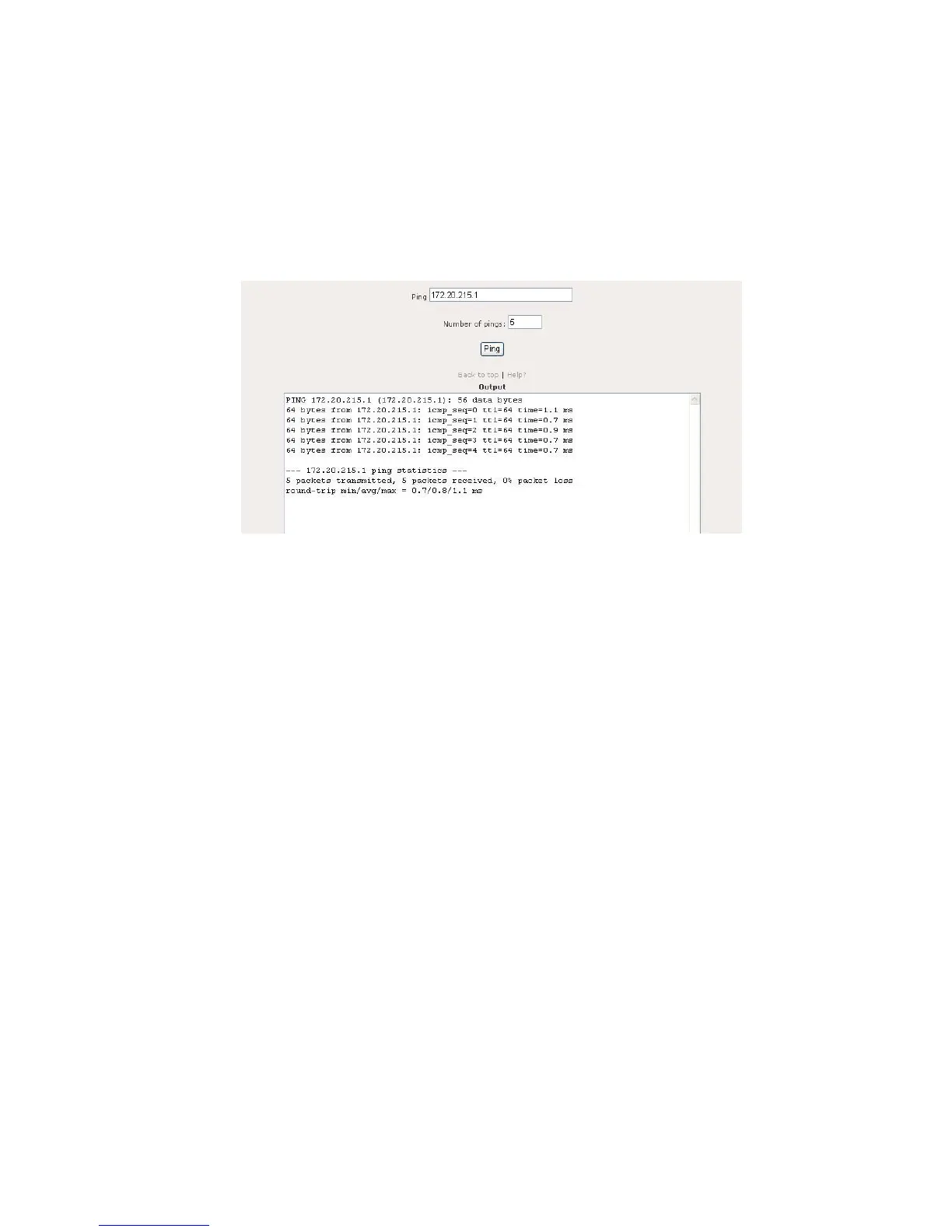

Figure 11.1.1: Ping page
Ping page contains the following parameters:
 Ping: Enter the IP address to ping.
 Number of pings: Enter the number of pings to send.
 “Ping” button to ping and display output of ping command.
 “Output” text area display result of the ping command.
3.8.2 Tools > Ifconfig
Ifconfig page is used to collect verbose information about device network interfaces.
Figure 11.2.1 illustrates the ifconfig page.
