LevelOne WAB-7400 - 3.2.1 Network > WLAN

26
3.2 Network
3.2.1 Network > WLAN
This device will form a wireless mesh network with other device provided the correct
configuration. Figure 5.1.1 illustrates the wireless settings of the mesh.

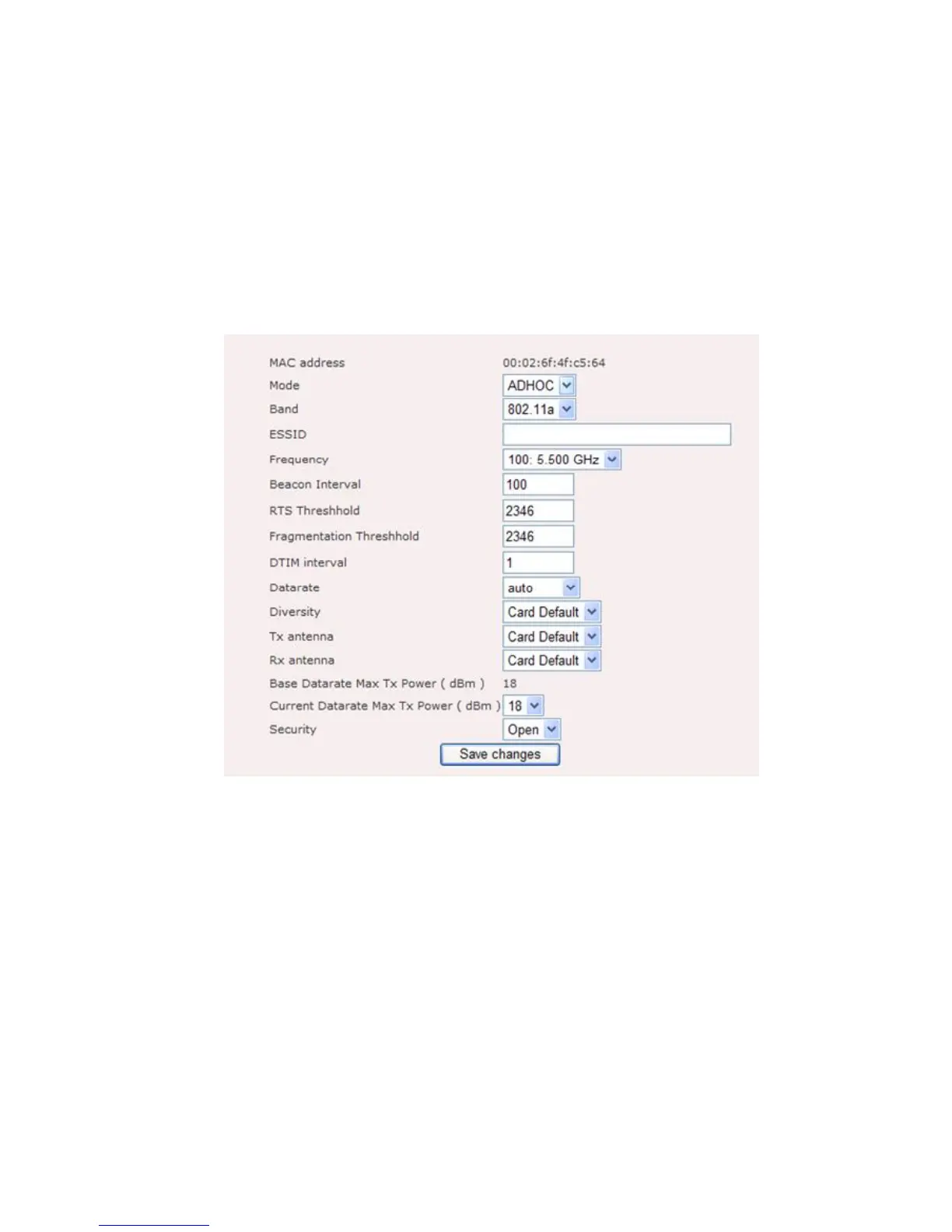

Figure 5.1.1: Network - WLAN configuration page
 MAC: Displays the MAC address of the wireless interface.
 Mode: WLAN 1 defined as ADHOC mode. ADHOC mode will bring the
wireless device to adhoc mode where no AP is required. The connection is
established for the duration of one session by discovering others device within
range. WLAN 2 defined as AP mode. AP mode will bring the wireless device
to Access Point mode. Under this mode, it can connect multiple wireless
communication devices together to form a wireless network can relay data
between wireless and wired devices.
