User Manual for LEVIFLOW
®
LFS-SU Flowmeters
www.levitronix.com
PL-4509-00, Rev09, DCO# 21-230
10

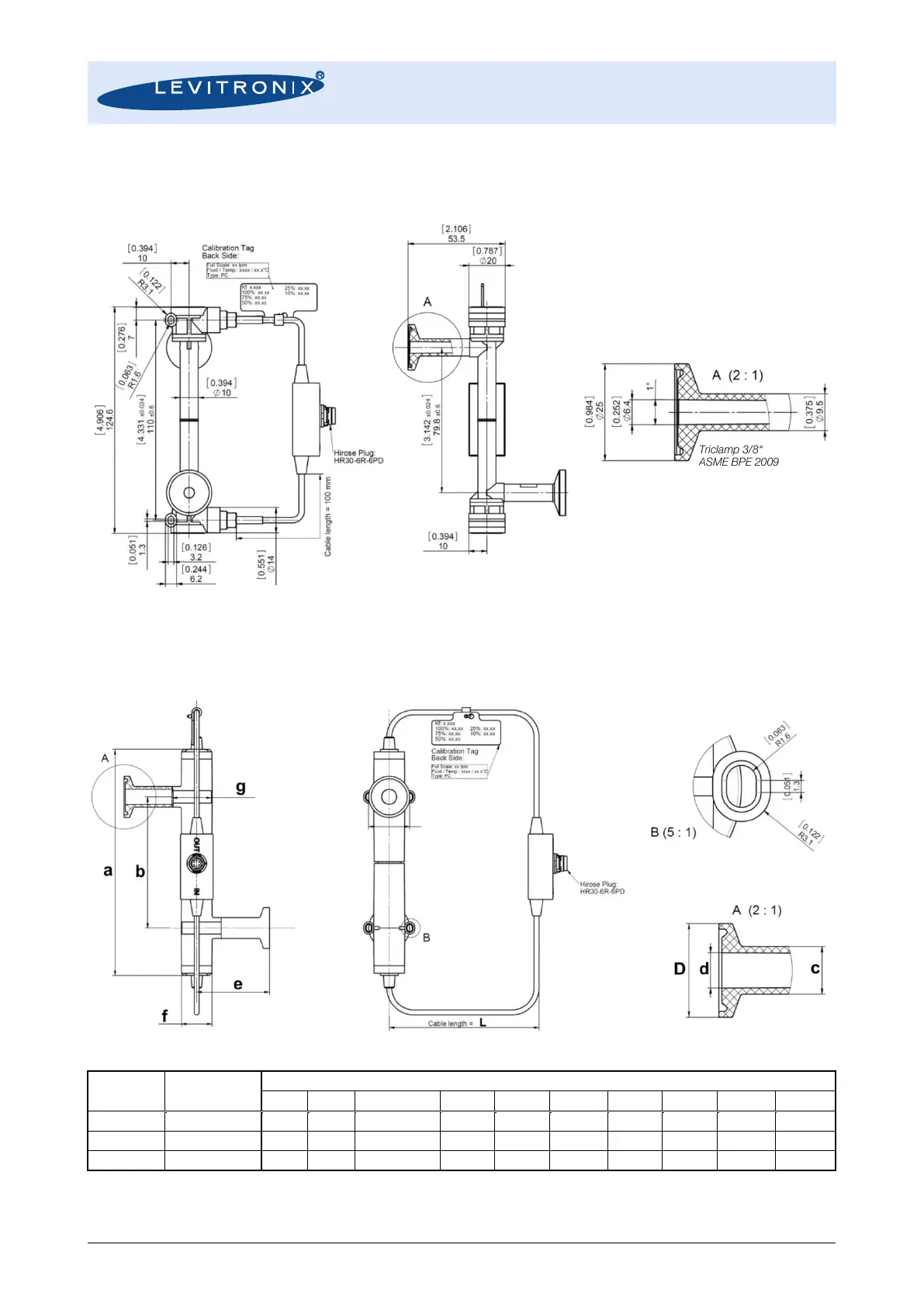

2.5 Basic Dimensions of Main Components
2.5.1 Dimensions of Sensors
Figure 7: Dimensions of LFS-03SU and LFS-06SU flow sensors
Sensor
Type
Triclamp
Fitting Size
(ASME BPE 2009)
Dimensions in [mm]
a
b
c
D
d
e
f
g
h
L
LFS-10SU-Z
1/2"
138
80
Ø 12.7 (= 1/2”)
Ø 25
Ø 9.4
44.4
18.6
24
25
110
LFS-15SU-Z
1”
164.8
100
Ø 25.4 (= 1”)
Ø 50.5
Ø 22.2
79.4
23
26
30
160
LFS-20SU-Z
1”
231.2
161.2
Ø 25.4 (= 1”)
Ø 50.5
Ø 22.2
82.5
28
34
35
160
Figure 8: Dimensions of LFS-10SU, LFS-15SU and LFS-20SU flow sensors
