User Manual for LEVIFLOW
®
LFS-SU Flowmeters
www.levitronix.com
PL-4509-00, Rev09, DCO# 21-230
11
2.5.2 Dimensions of Converters

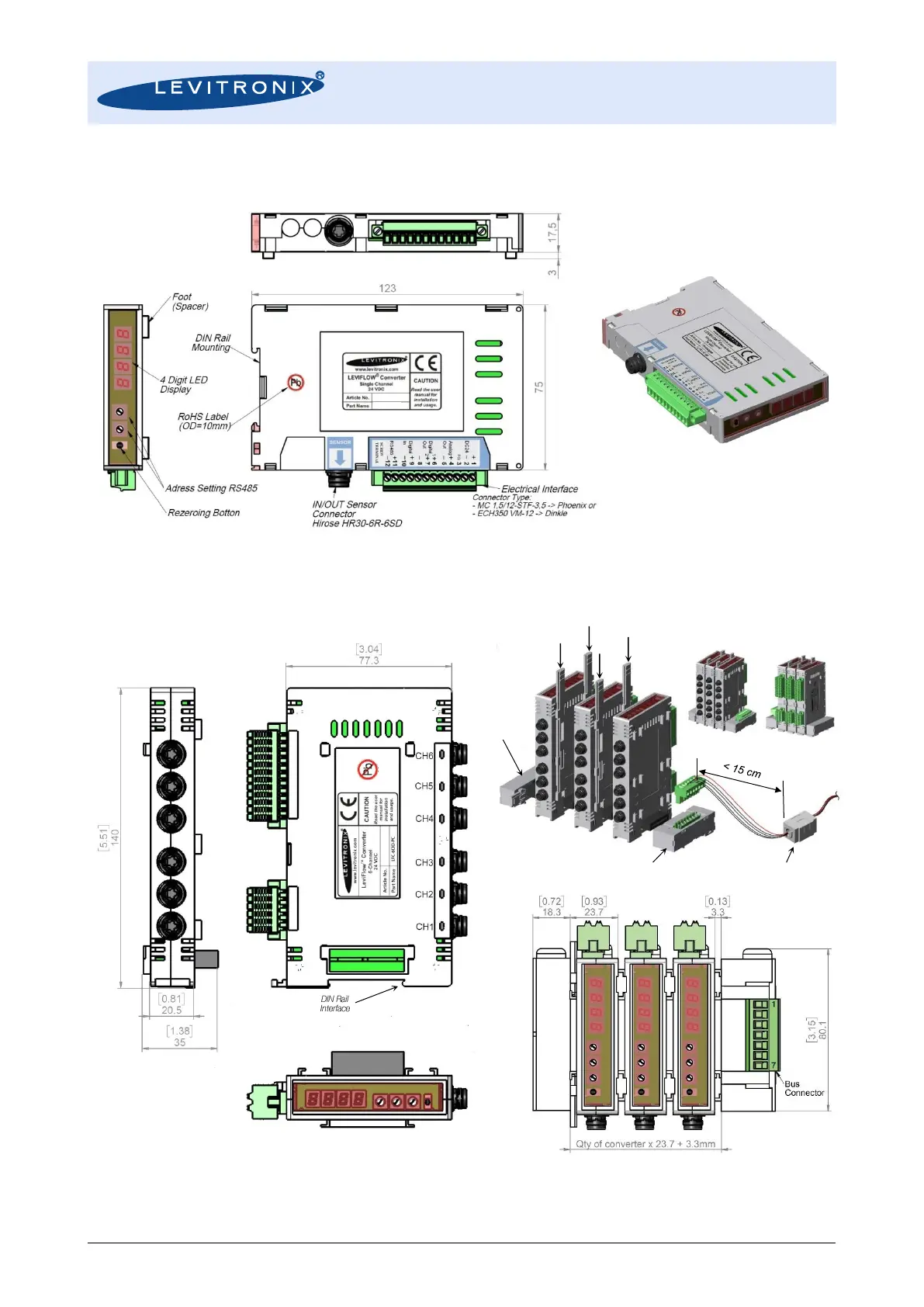

Figure 9: Dimensions and layout of interfaces of converter LFC-1C-PC
Figure 10: Dimensions and stacking concept of multi-channel converter LFC-6CIO-PC
LFC-1C-PC
100-30374
Connector Box
(RS485 and Supply Bus)
EMI Ferrite
Termination
Box)
