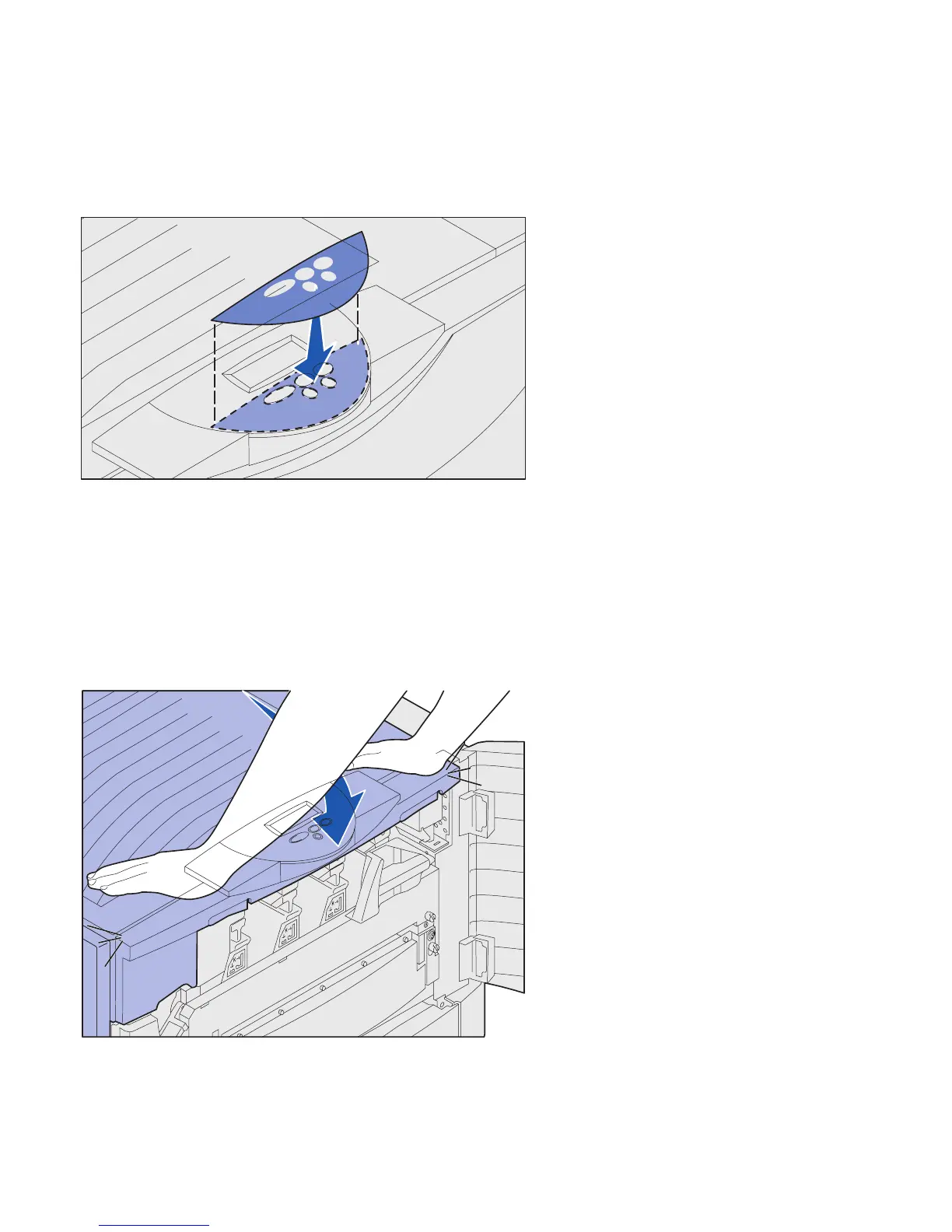

Attaching an adhesive operator
panel overlay
Closing the top cover
CAUTION: Before closing the top cover, make sure the
area under the cover is free of hands, clothing, and other
items.
If English is not your preferred language,
attach the overlay that has the
appropriately translated button names:
1 Locate the adhesive overlay
packaged with your printer.
2 Peel the backing off the overlay.
3 Align the holes in the overlay with
the buttons on the operator panel,
and then press it into place.
4 Peel the covering away from the
overlay.
Refer to the publications CD for
instructions on changing the language of
the text displayed on the operator panel.
1 Place both hands on the top cover.
2 Press down firmly until the top
cover clicks into place.
Install printer supplies
27
