Installing a memory card
Note: Memory options designed for other Lexmark
printers may not work with your printer.
Warning: Memory and flash memory cards are easily
damaged by static electricity. Touch something metal,
such as the printer frame, before you touch a memory
card.
Complete the following instructions to
install either a printer memory card or a
flash memory card. Memory cards must
have 168-pin connectors.
The system board has three connectors
for optional memory cards. You can
install anycombination of printer memory
and flash memory cards in the
connectors. However, the printer only
recognizes one flash memory card at a
time.
1 Remove the system board access
cover (see page 29).
2 Push open the latches on both
ends of the memory connector you
want to use.
3 Unpack the memory card.
Avoid touching the connection
points along the edge of the card.
Save the packaging.
4 Align the notches on the bottom of
the card with the notches on the
connector.

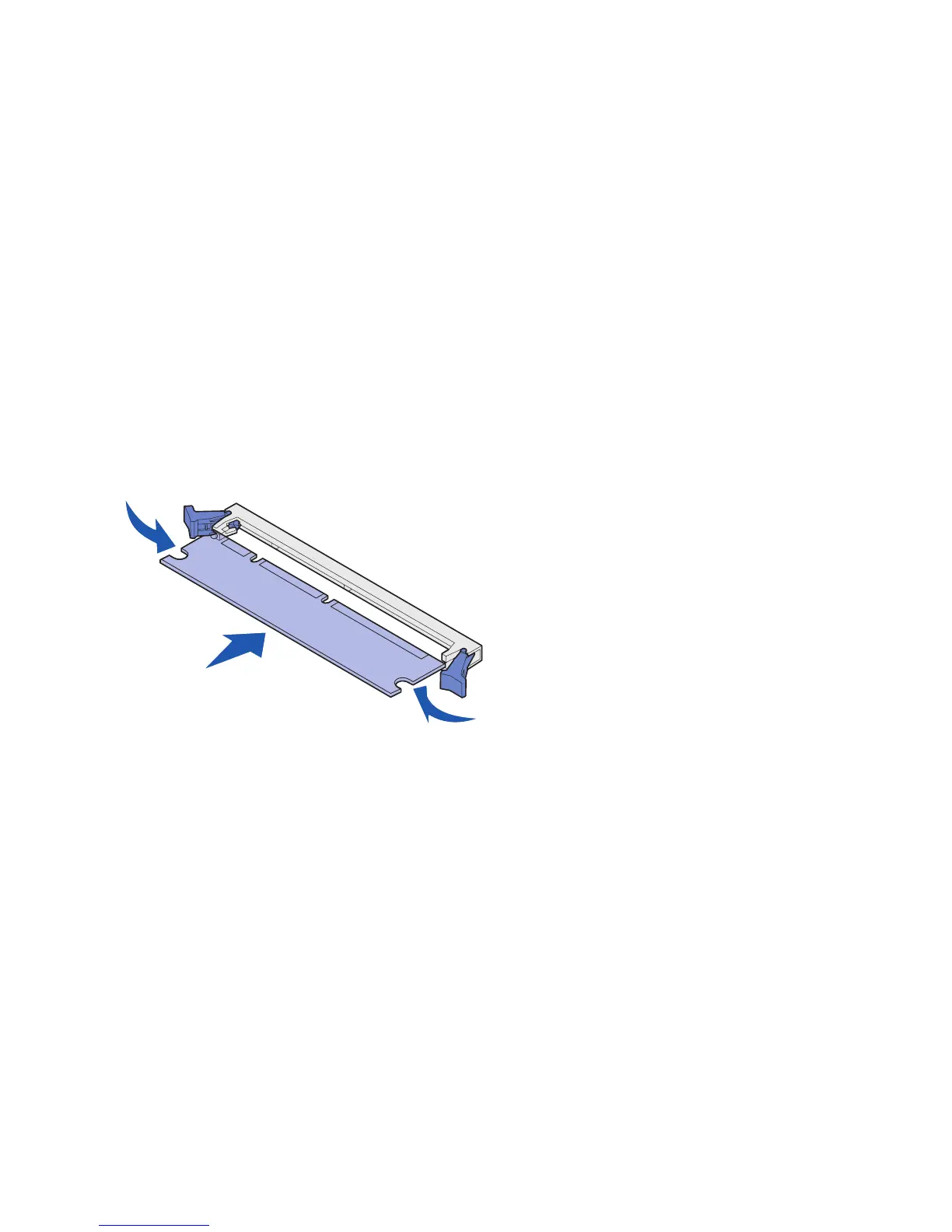

5 Push the memory card firmly into
the connector until the latches on
either end of the connector snap
into place.
It may require some force to fully
seat the card.
6 Make sure each latch fits over the
notch on each end of the card.
Install memory and option cards
32
