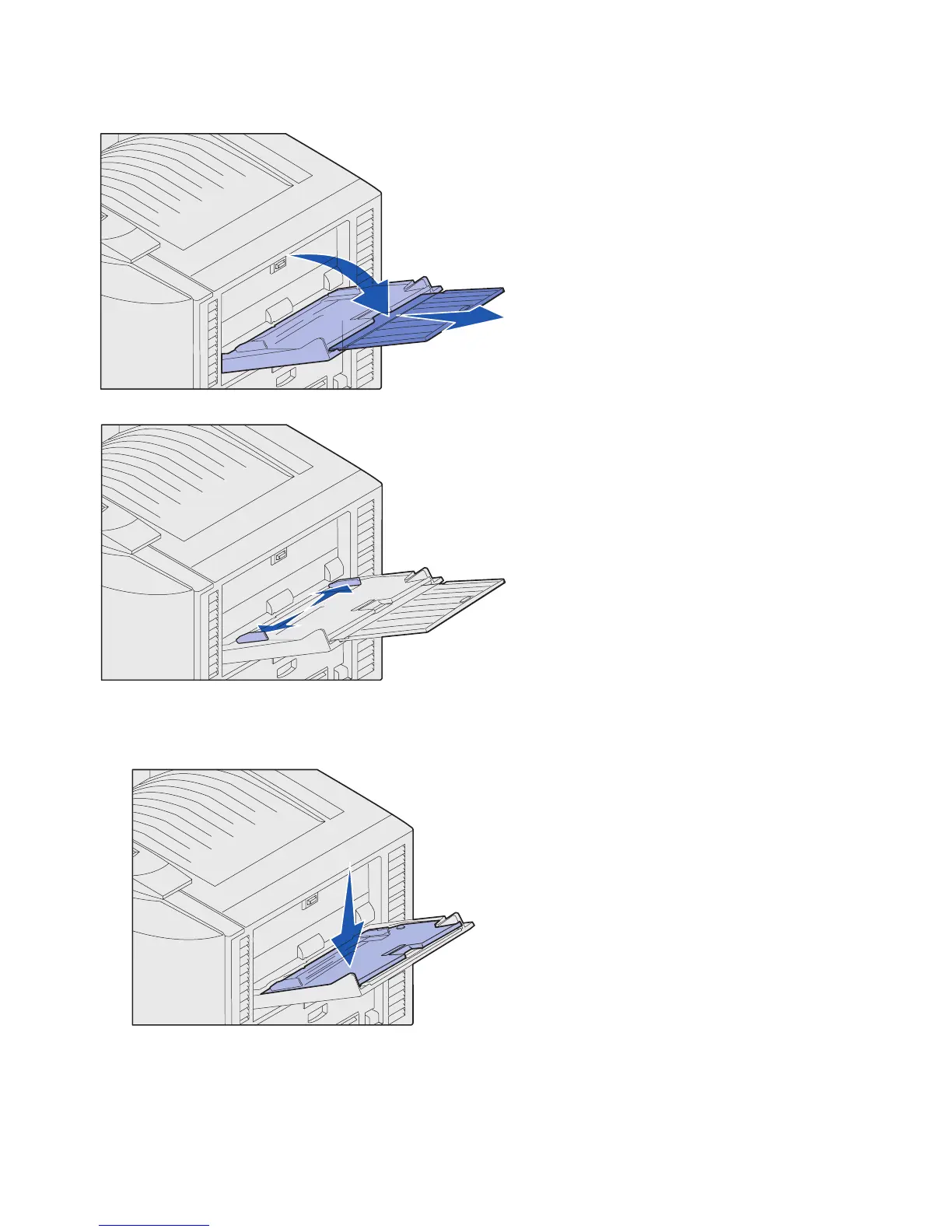

To load the multipurpose feeder:
1 Open the multipurpose feeder.
2 Slide the paper guides to the
correct position for the size of
paper you are loading.
Note: The guides are interconnected. When you move
one, they both move together.
3 Press the paper feed plate down
until it locks into place.
4 Flex the sheets back and forth to
loosen them, and then fan them.
Do not fold or crease the paper.
Straighten the edges of the stack
on a level surface.
Load paper
46
