Lexmark MB2650 - Main Drive Gearbox Removal

To Next Page

To Previous Page

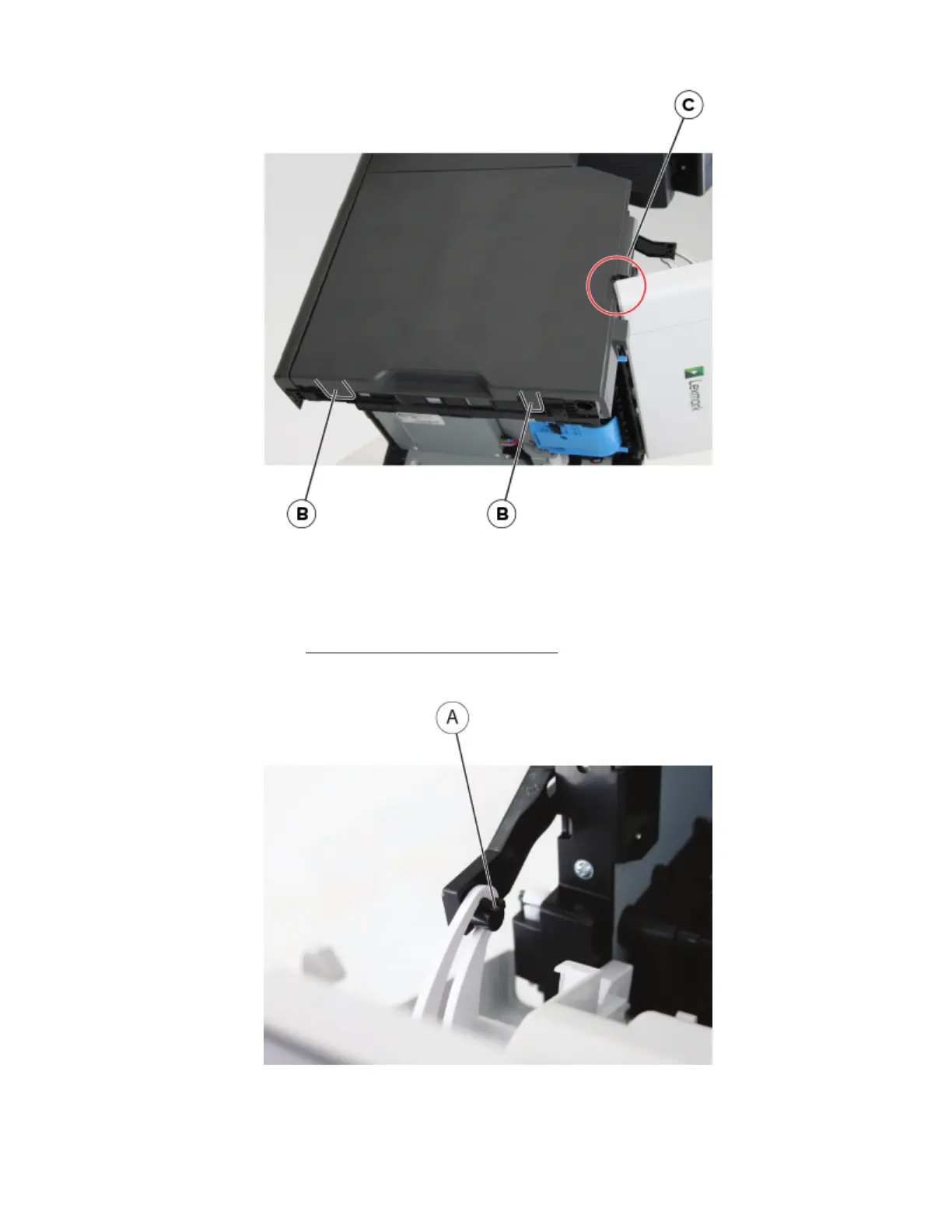

4 Remove the cover.

Main drive gearbox removal

1 Remove the left cover. See “Left cover removal” on page 226.

2 Release the latch (A), and then detach the link.

7018

Parts removal

227
