Cleaning the scanner

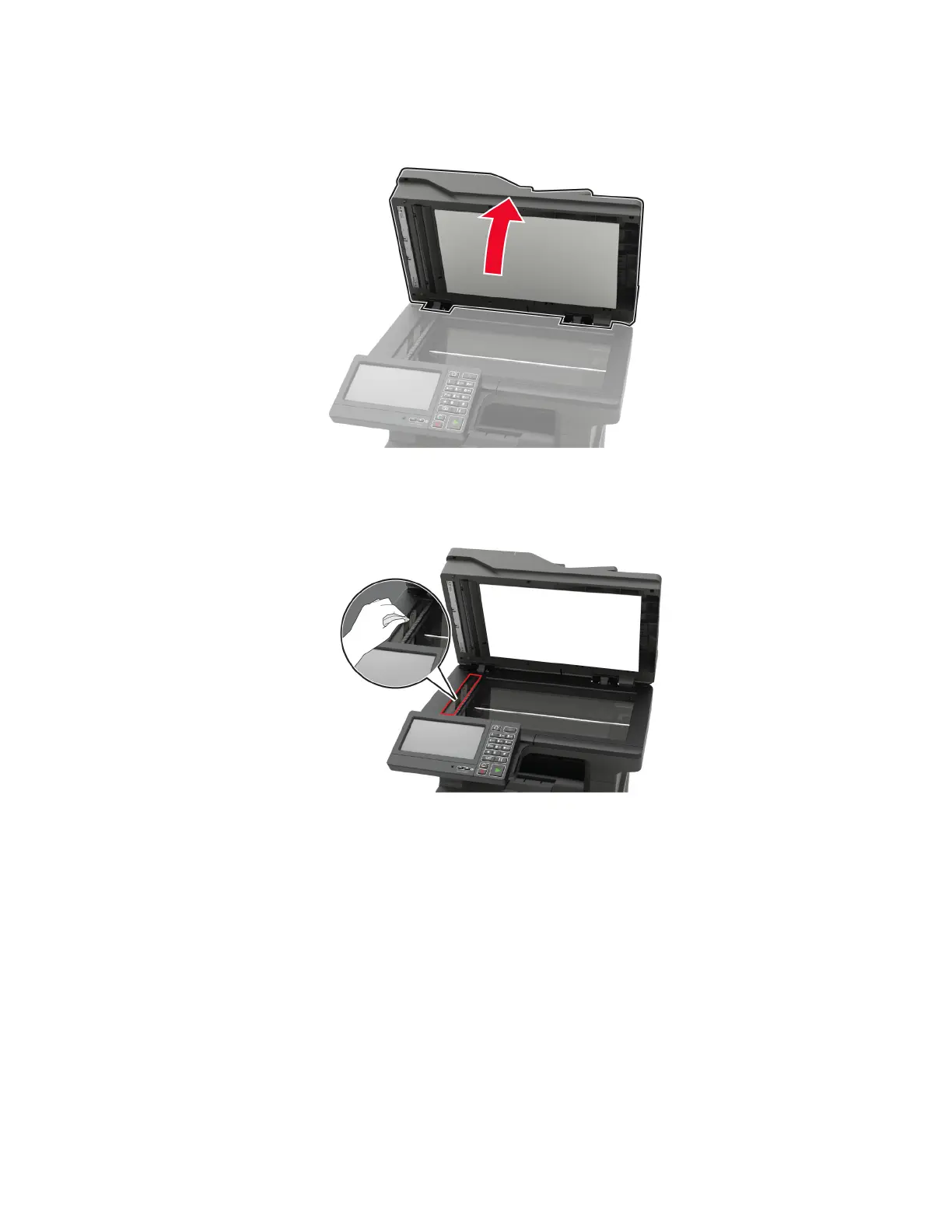

1 Open the scanner cover.

2 Using a damp, soft, lint-free cloth, wipe the following areas:

• ADF glass
