Lexmark MB2650 - Cartridge Gearbox Removal

7 Release the cut cable.
Note: Pay attention to the cable route.
8 Open the controller board access cover, and then disconnect the cable.
Cartridge gearbox removal
1 Remove the left cover. See “Left cover removal” on page 226.

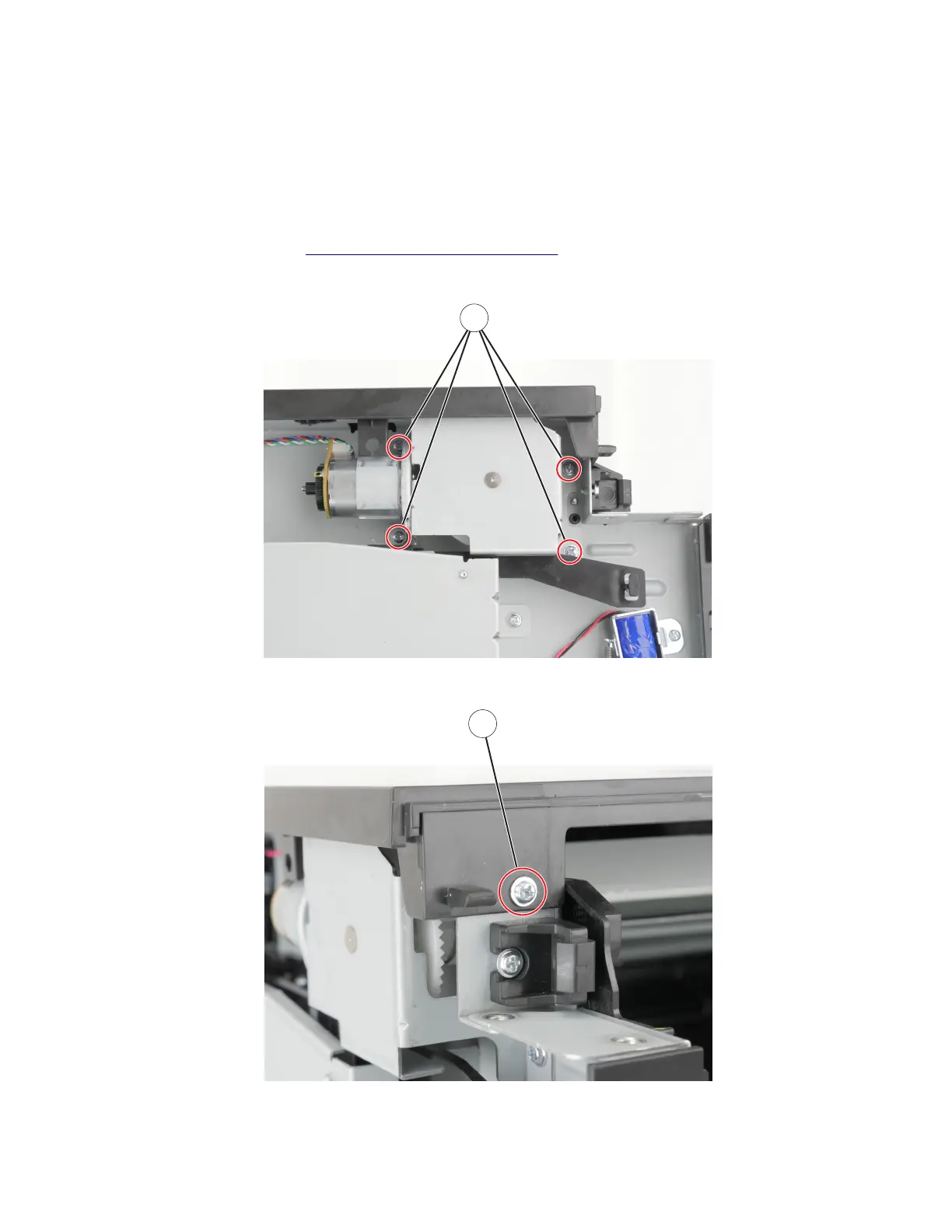

2 Remove the four screws (A).
A
3 Remove the screw (B).
B
7018
Parts removal
236
