Lexmark MB2650 - MPF Gearbox Removal

MPF gearbox removal
1 Remove the front door. See “MPF with front access cover removal” on page 252.
2 Remove the left cover. See “Left cover removal” on page 226.
3 Remove the main drive gearbox. See “Main drive gearbox removal” on page 227.

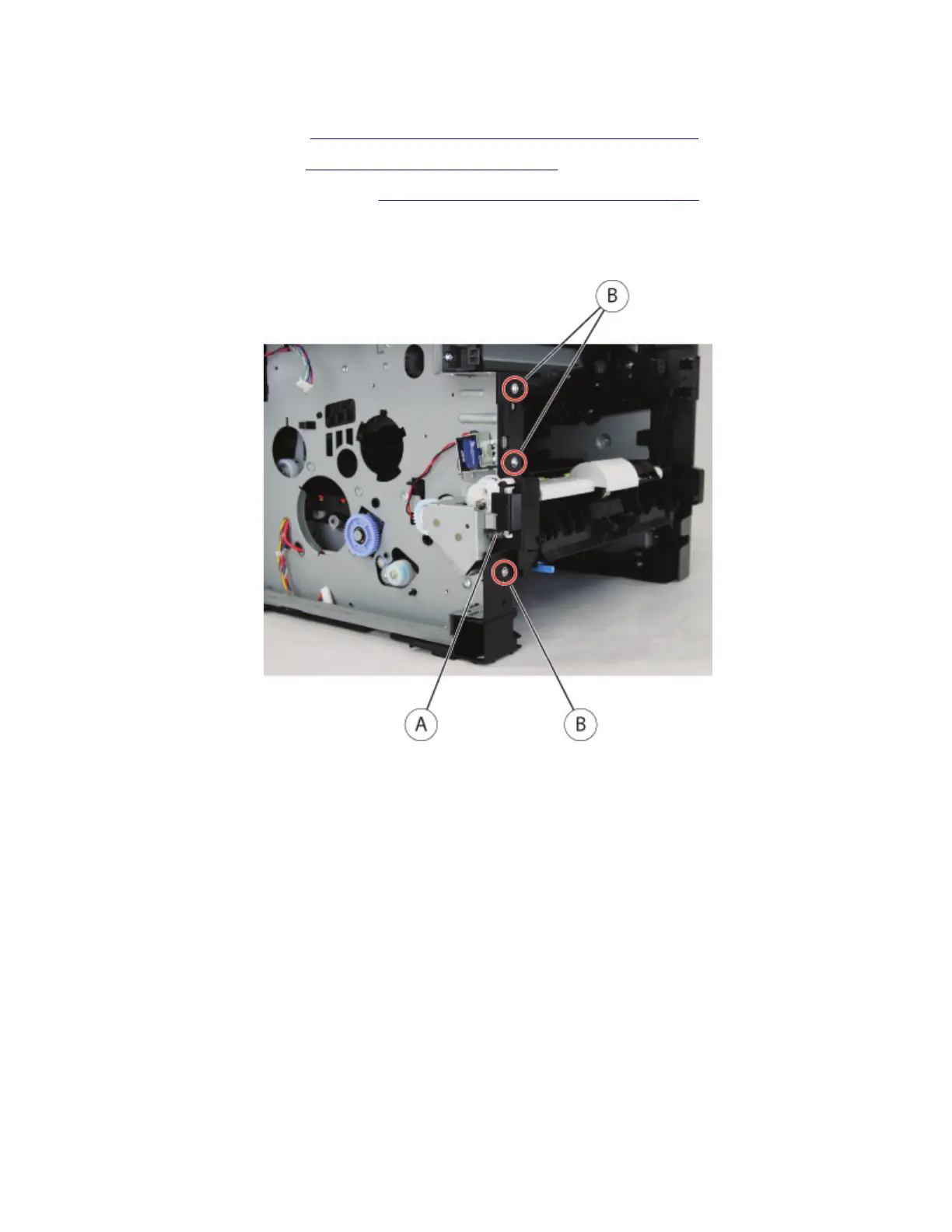

4 Disconnect the spring (A).
5 Remove the three screws (B) to loosen the mount.
7018
Parts removal
229
