Lexmark MB2650 Service Manual

Pick/lift motor gearbox removal
1 Remove the rear cover. See “Rear door and cover removal” on page 295.
2 Remove the power supply. See “Power supply removal” on page 273.
3 Remove the duplex. See “Duplex removal” on page 275.

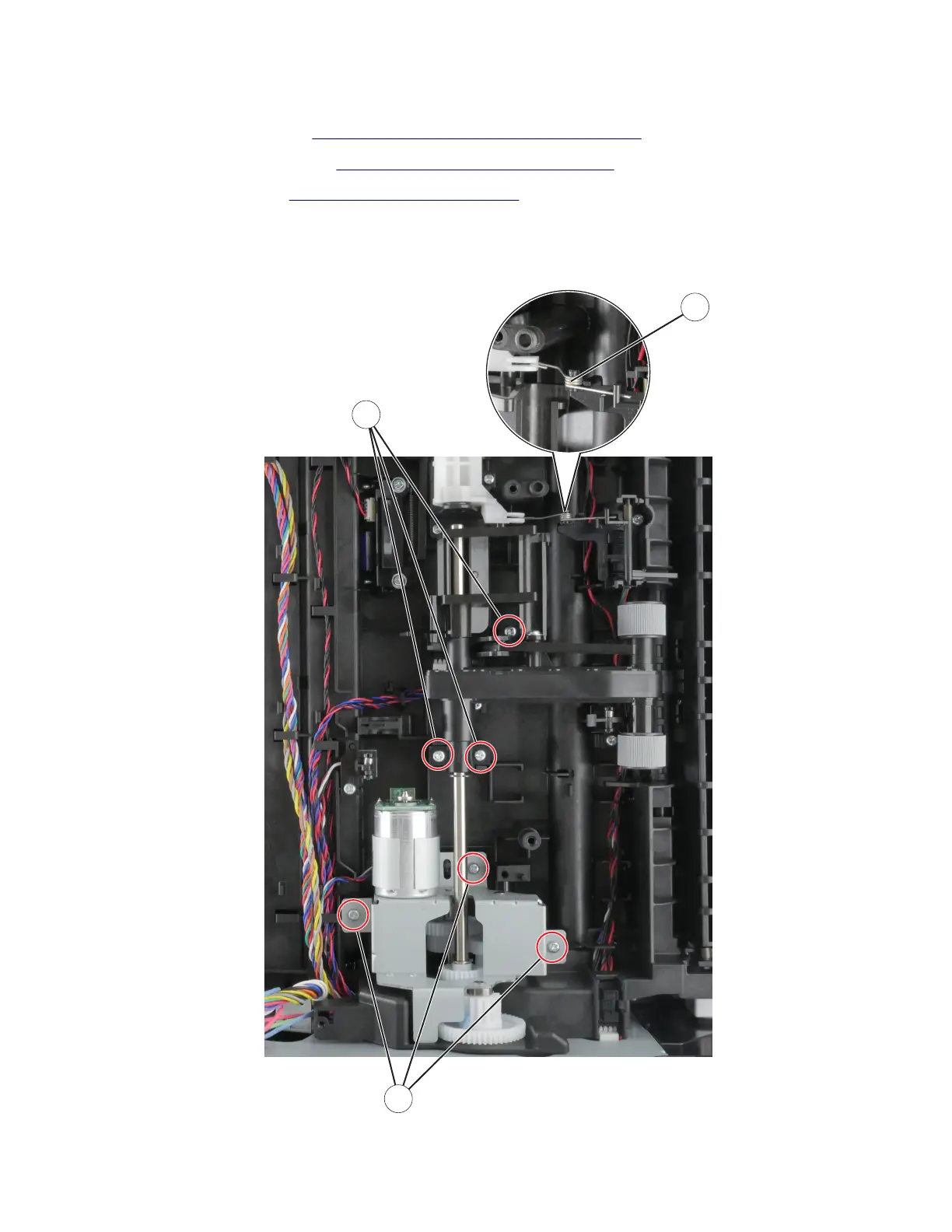

4 Remove the six screws (A).
5 Detach the spring (B).
A
A
B
7018
Parts removal
291
