Cooling fan removal

1 Remove the right cover. See “Right cover removal” on page 237.

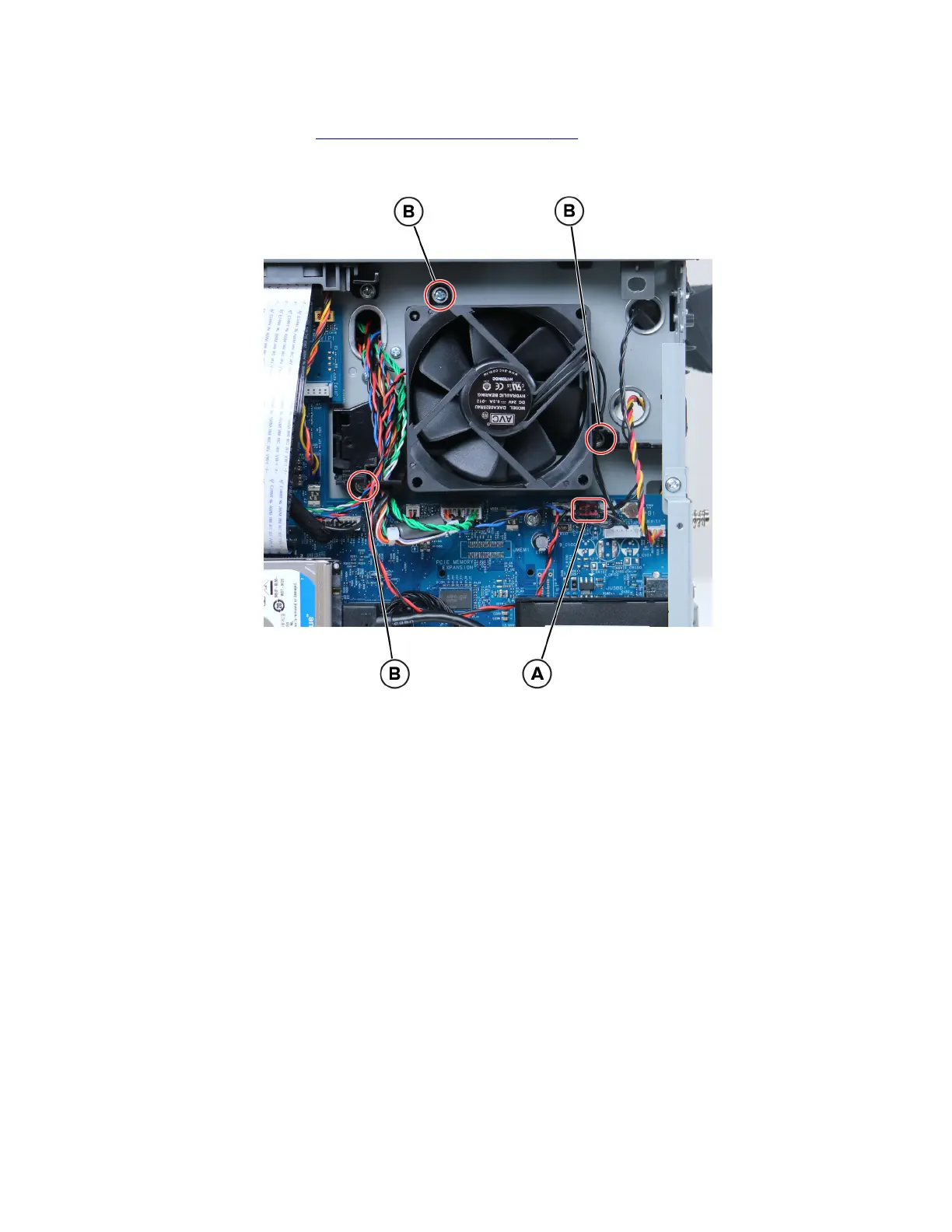

2 Disconnect the cable (A), remove the three screws (B), and then remove the fan bracket.

7018

Parts removal

243
