Lexmark MB2650 - Hard Drive Removal; Interconnect Cable Removal

Hard drive removal
1 Open the right access cover.

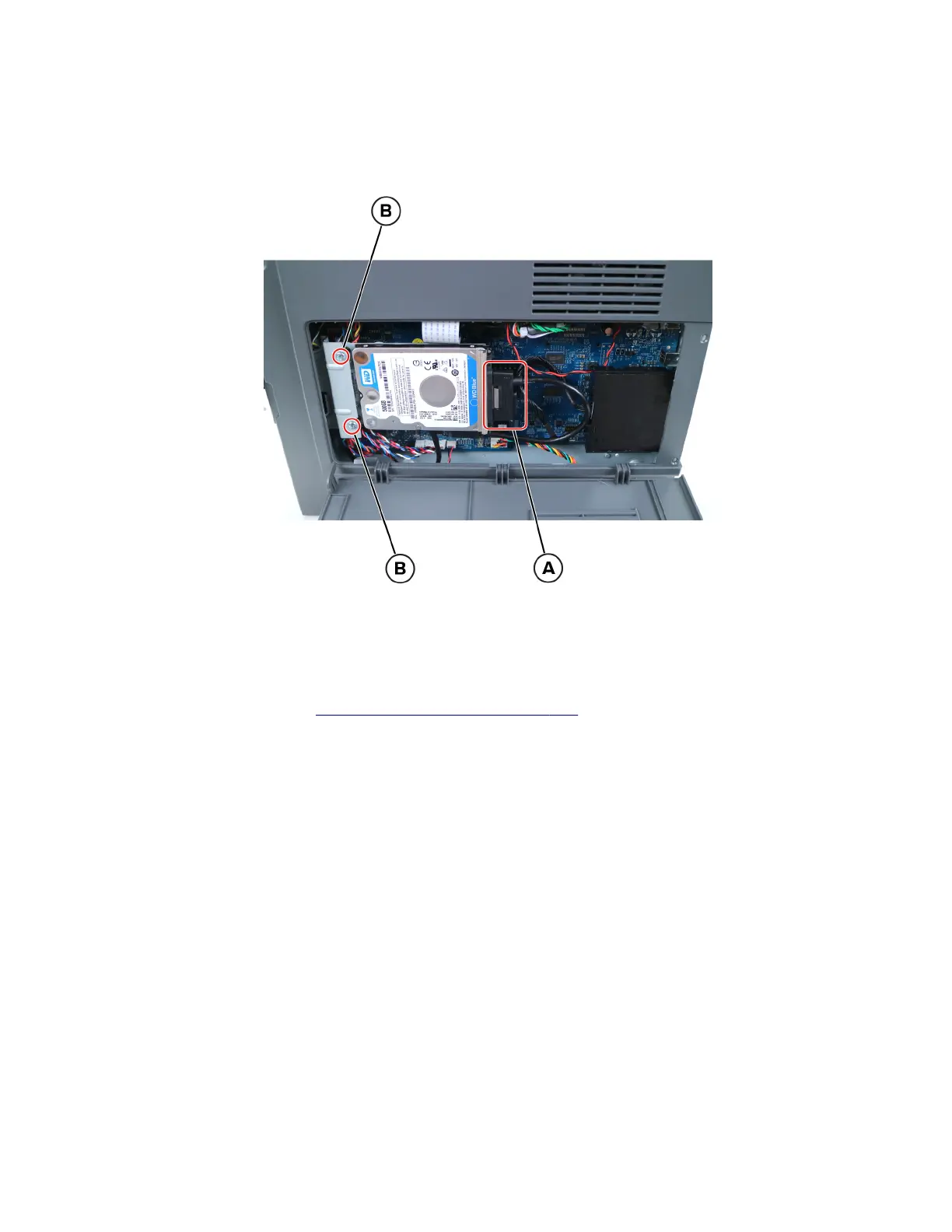

2 Disconnect the cable (A), and then remove the two screws (B).
3 Remove the hard drive.
Interconnect cable removal
1 Remove the right cover. See “Right cover removal” on page 237.
2 Position the printer on its rear side.
3 Disconnect the cable JOPT1 from the controller board.
4 Remove the three screws (A).
7018
Parts removal
240
