Control panel covers and buttons removal

Control panel front cover removal

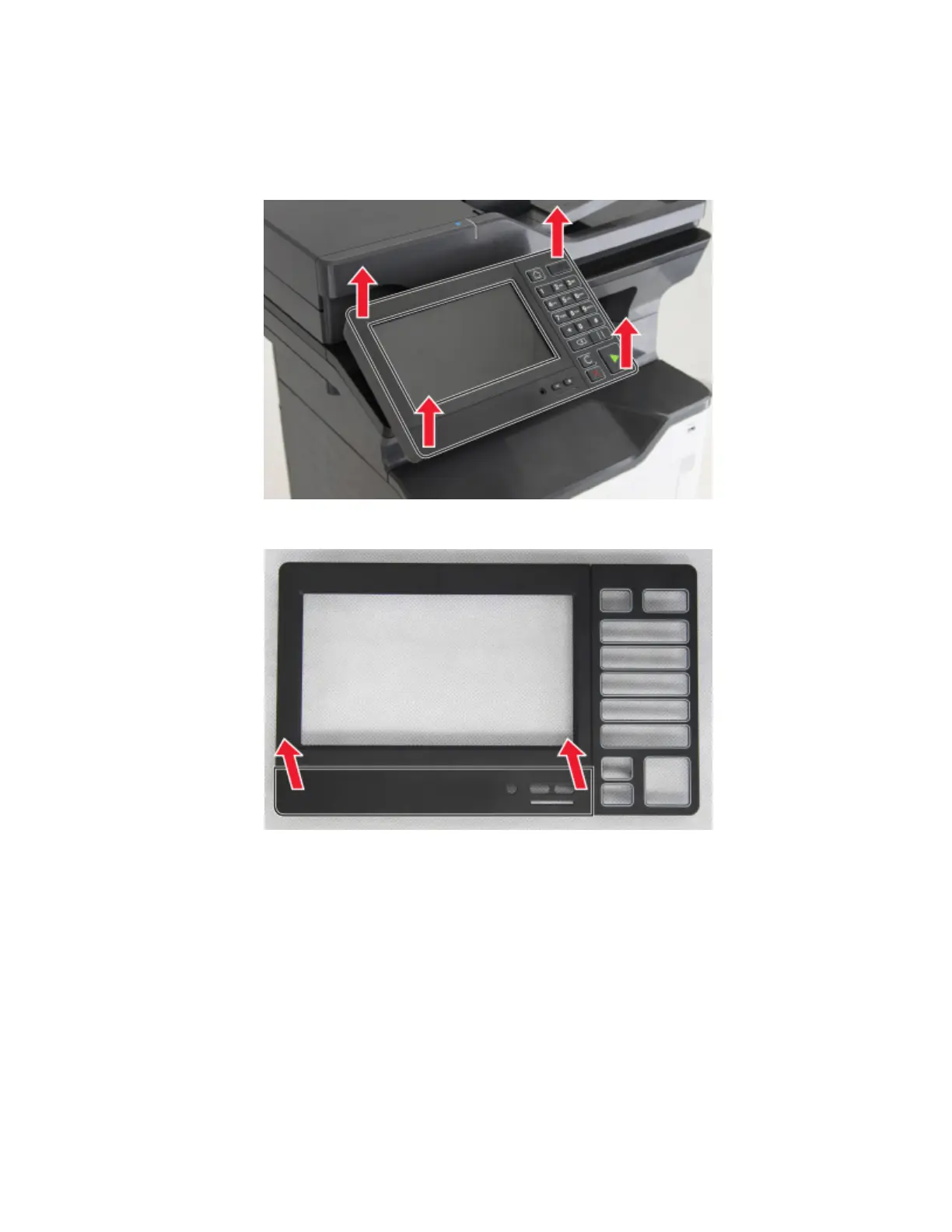

1 Remove the front cover.

2 Remove the bezel from the cover.

7018

Parts removal

257
