Fax card removal

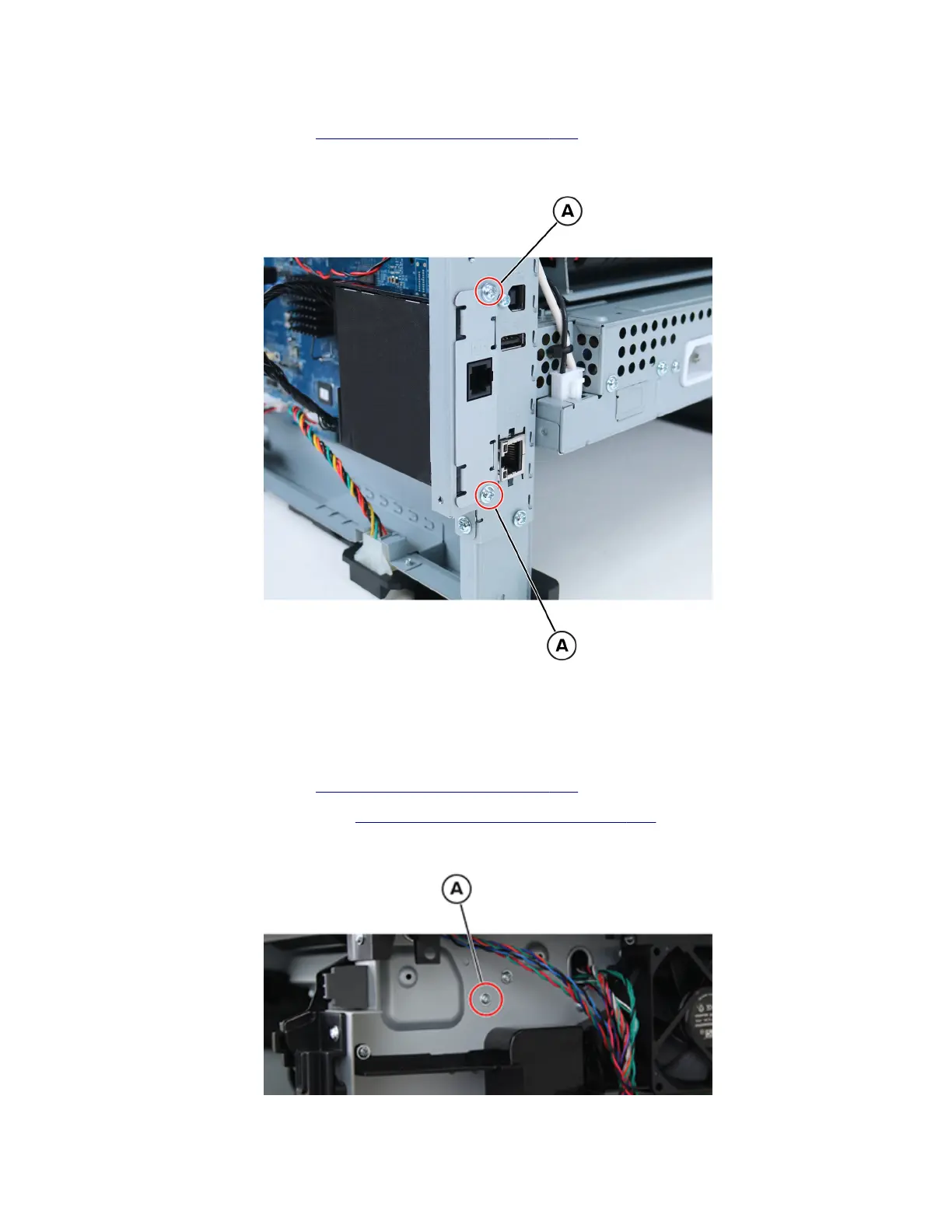

1 Remove the right cover. See “Right cover removal” on page 237.
2 Disconnect the fax card cable from the controller board, and then remove the two screws (A).
3 Remove the fax card.
Toner cartridge smart chip contact removal
1 Remove the right cover. See “Right cover removal” on page 237.
2 Remove the controller board. See “Controller board removal” on page 244.
3 Remove the screw (A).
7018
Parts removal
247
