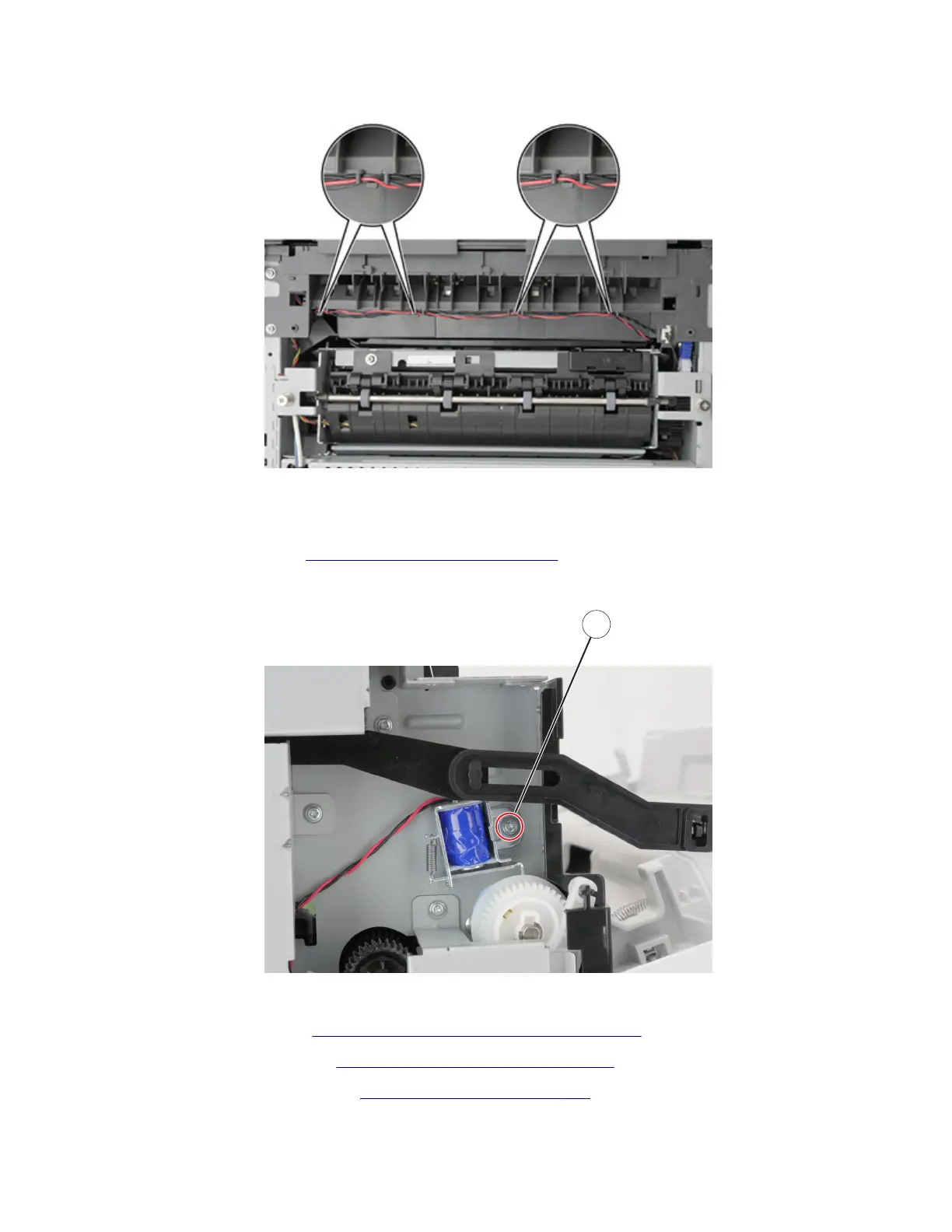

d Route the cable onto the redrive assembly. Make sure that the cable properly sits on the clamps.
MPF solenoid removal
1 Remove the left cover. See “Left cover removal” on page 226.
2 Remove the screw (A).
A
3 Cut the cable, and then remove the solenoid.
4 Remove the rear cover. See “Rear door and cover removal” on page 295.
5 Remove the power supply. See “Power supply removal” on page 273.
6 Remove the duplex assembly. See “Duplex removal” on page 275.
