ADF/scanner removals

ADF restraint pad removal

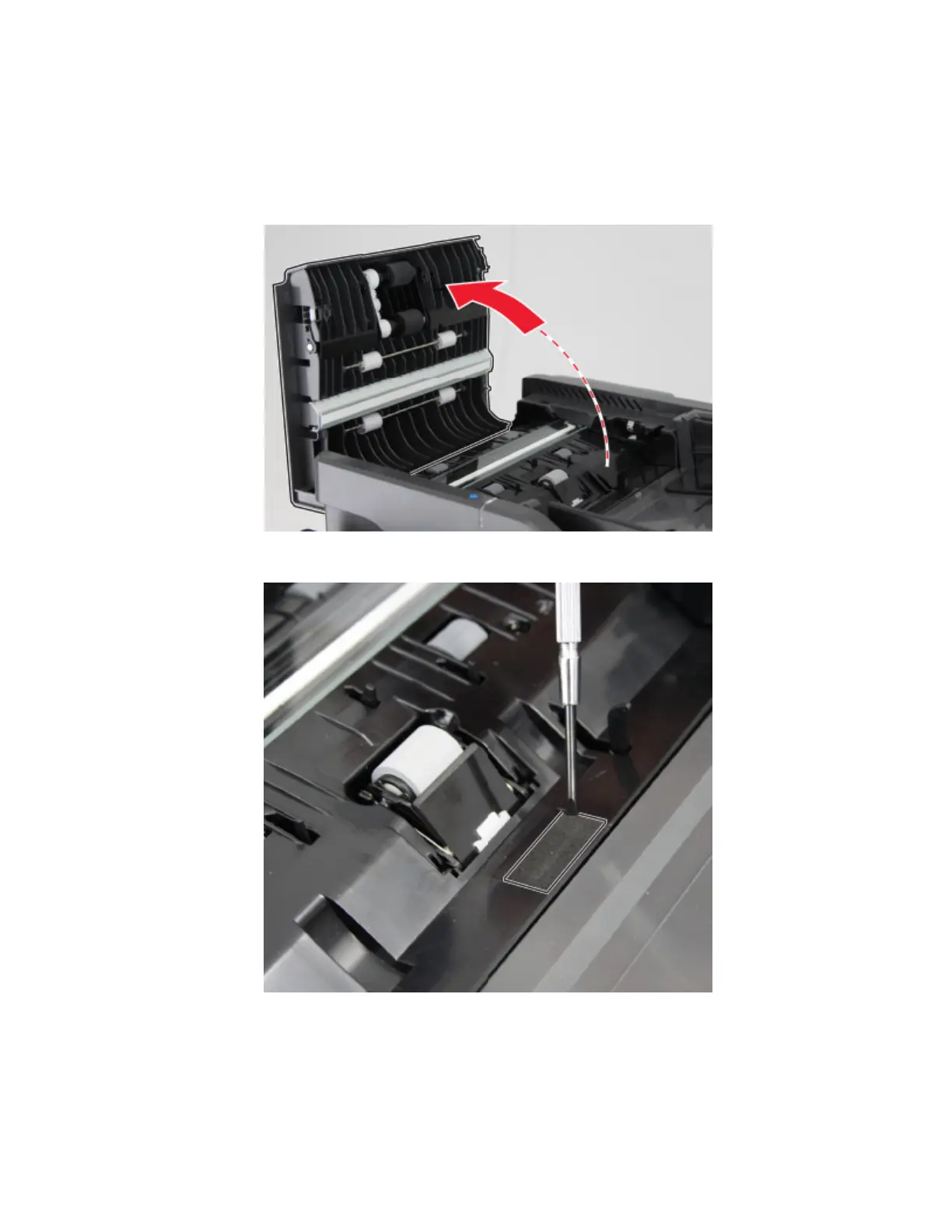

1 Open the ADF top cover.

2 Remove the restraint pad.
