Optional 550-sheet tray removals

Separator roller assembly removal

1 Remove the tray insert.

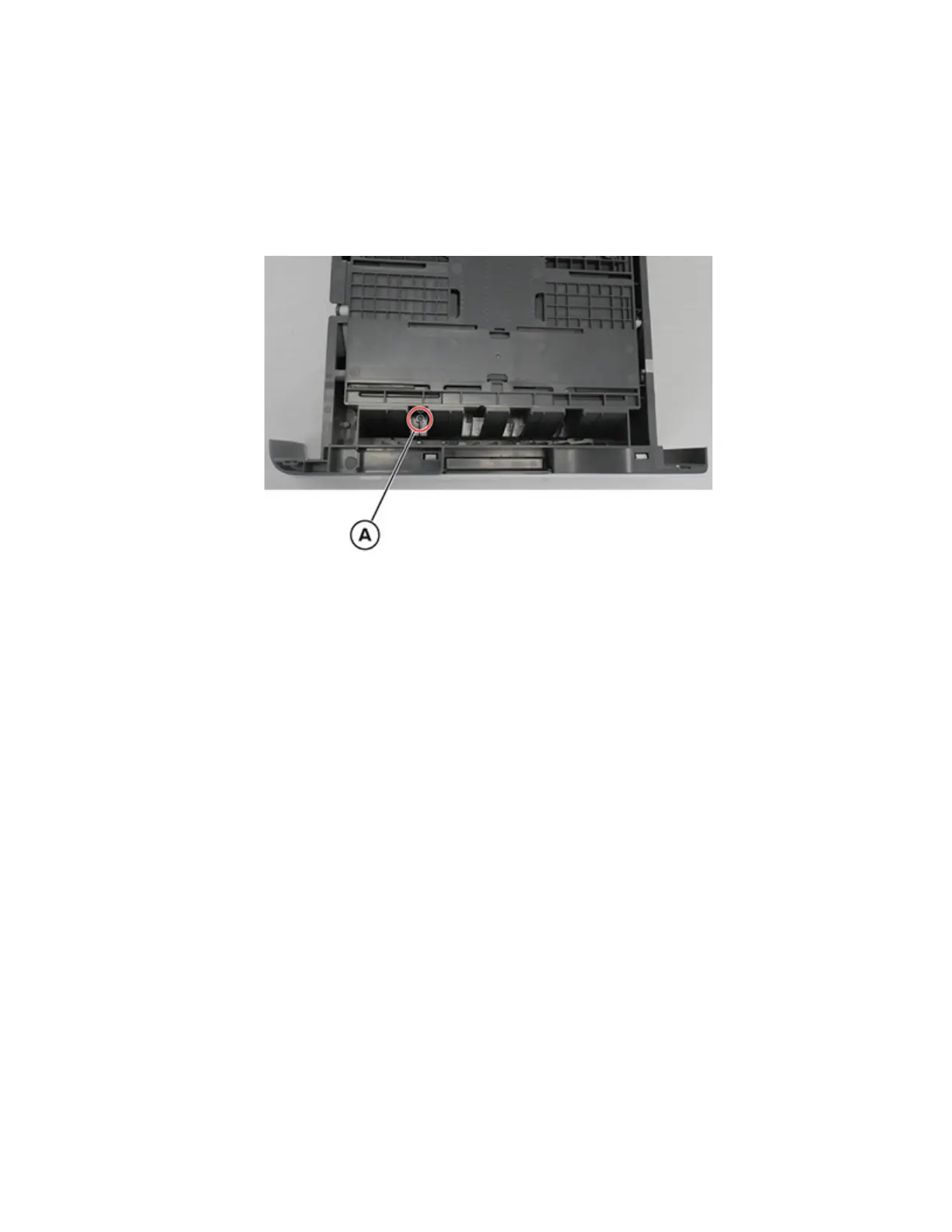

2 Under the tray, remove the screw (A).

7018

Parts removal

321
