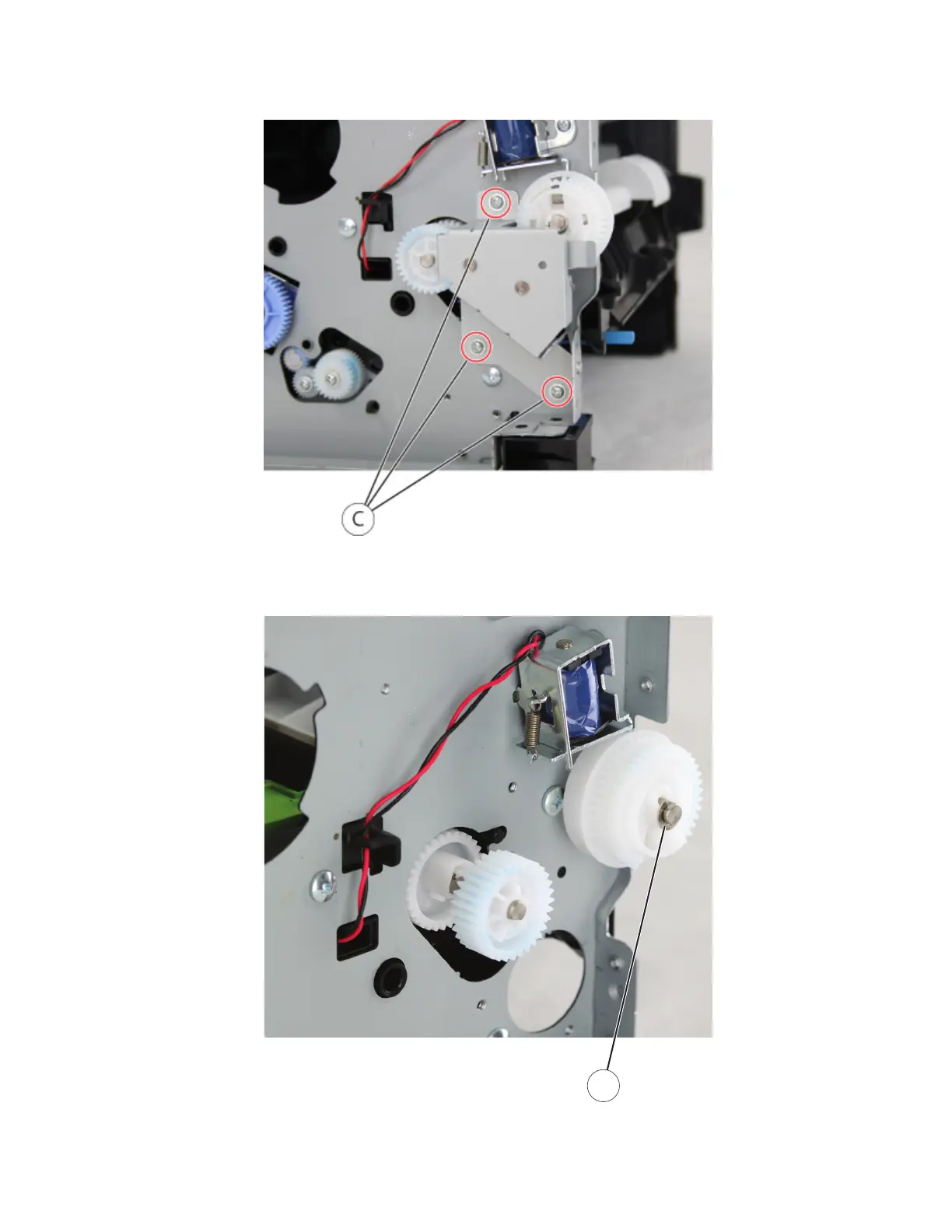

6 Remove the three screws (C) and the bracket.

7 Remove the E-clip (D), and then remove the gear.

Note: The solenoid may hinder removing the gear.

7018

Parts removal

230
