Lexmark MB2650 - Page 238

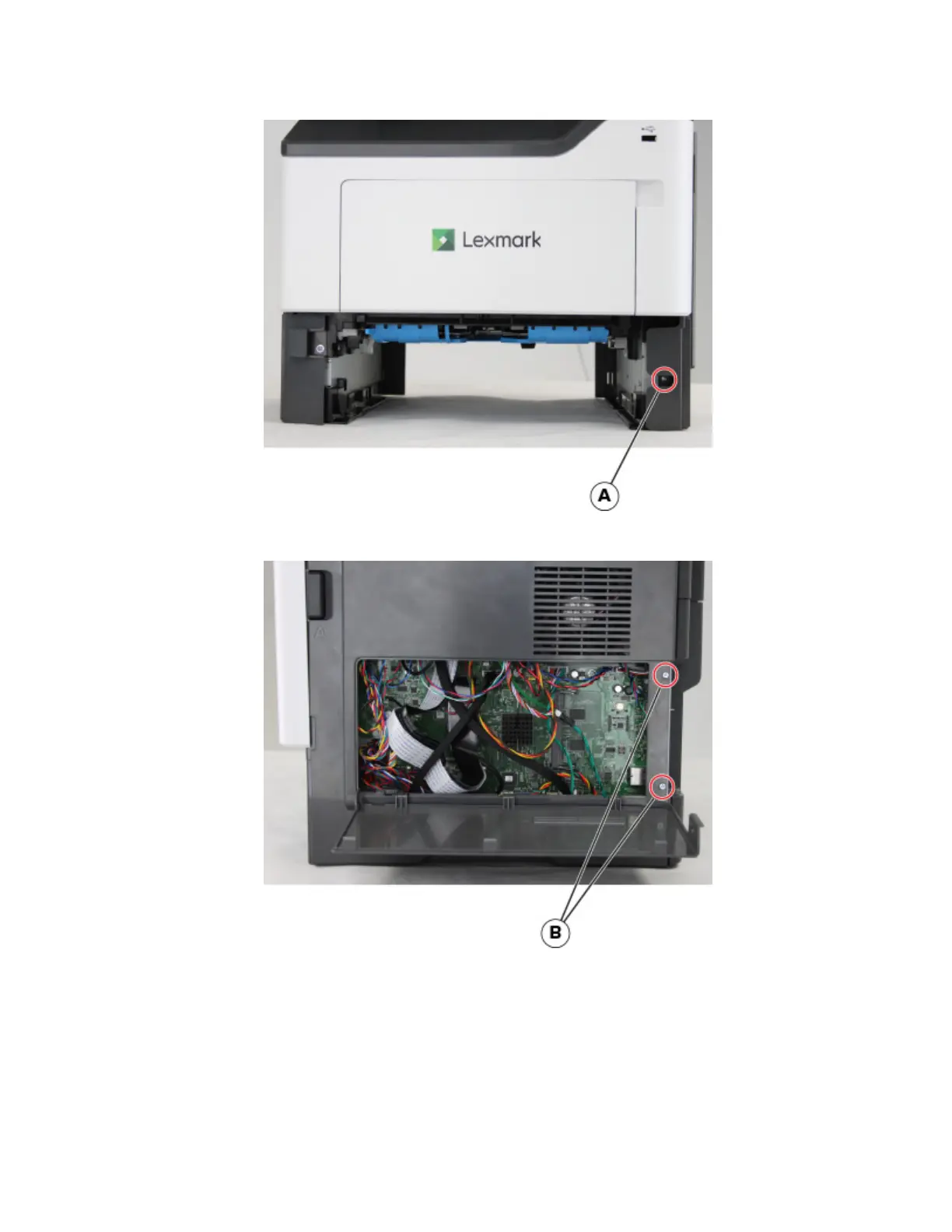

2 Remove the screw (A).
3 Remove the two screws (B).
4 Close the access cover, and then open the front door.
5 Release the two latches (C), and then disengage the middle front part (D) of the cover from the front door.
Warning—Potential Damage: The ADF might swing open while you position the printer on its side.
7018
Parts removal
238
