Lexmark MB2650 - Page 245

To Next Page

To Previous Page

Removal procedure

1 Remove the right cover. See “Right cover removal” on page 237.

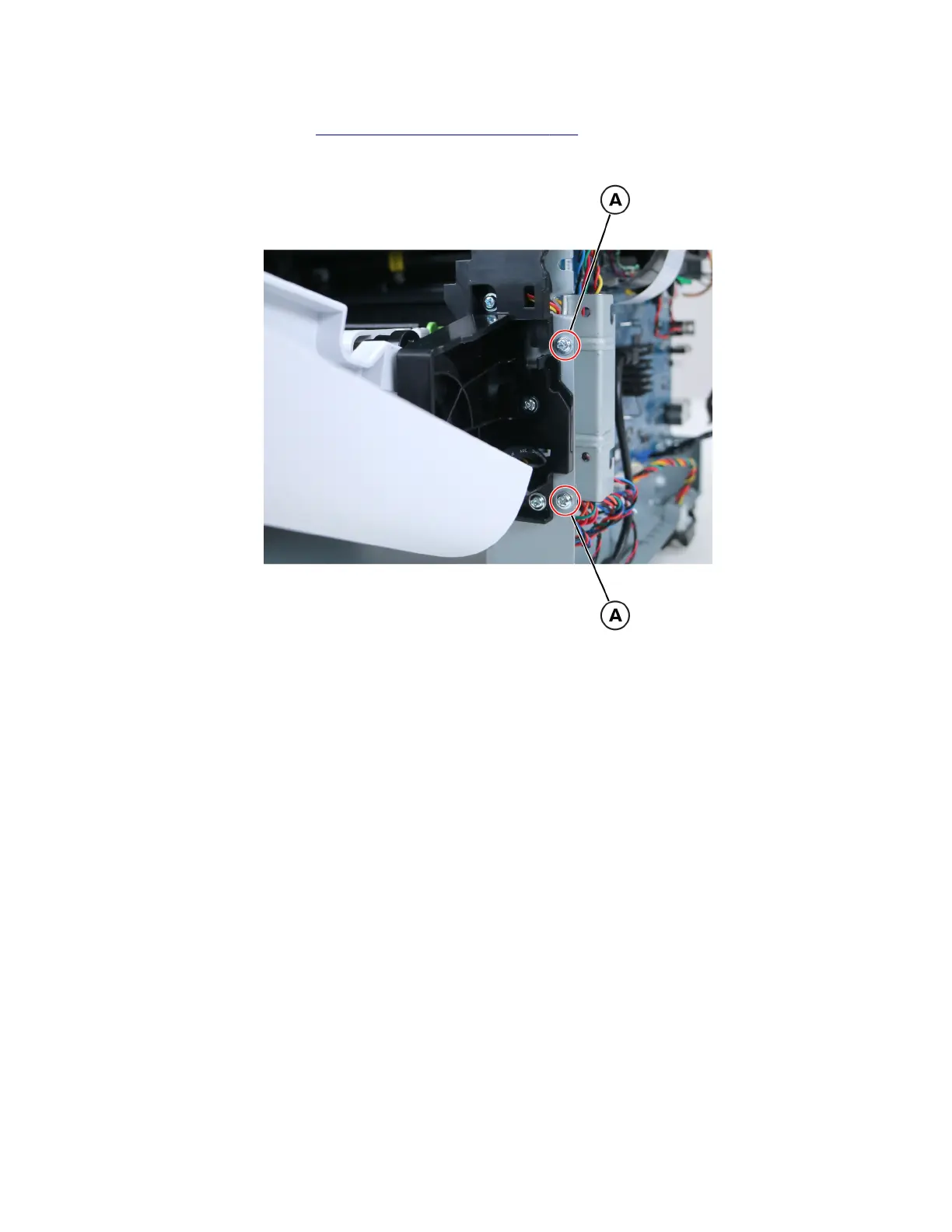

2 Remove the two screws (A), and then remove the bracket.

3 Disconnect all the cables from the controller board.

7018

Parts removal

245
