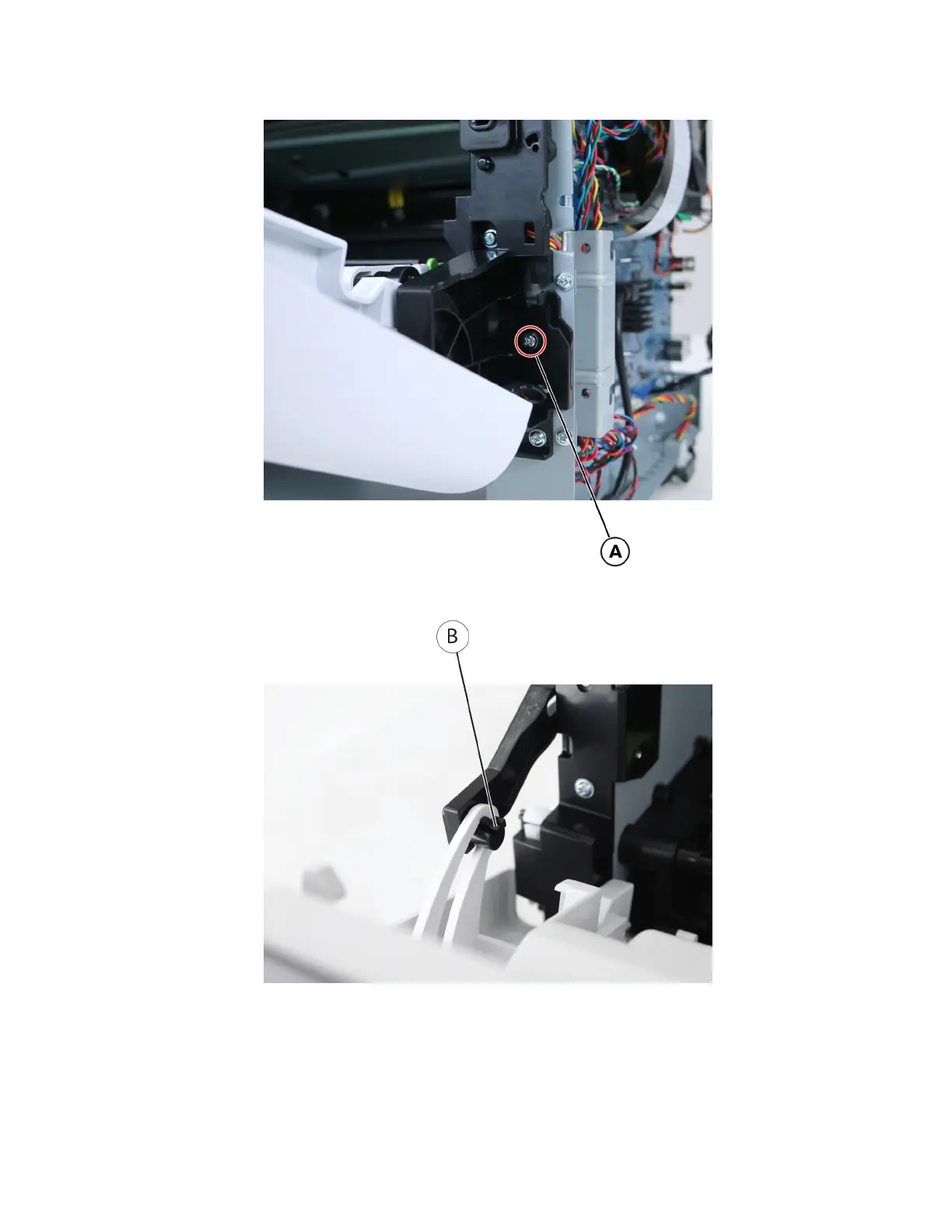

3 Remove the screw (A).

4 Release the latch (B), and then detach the link.

5 Disconnect JFUSB1 cable on the controller board.

7018

Parts removal

253
