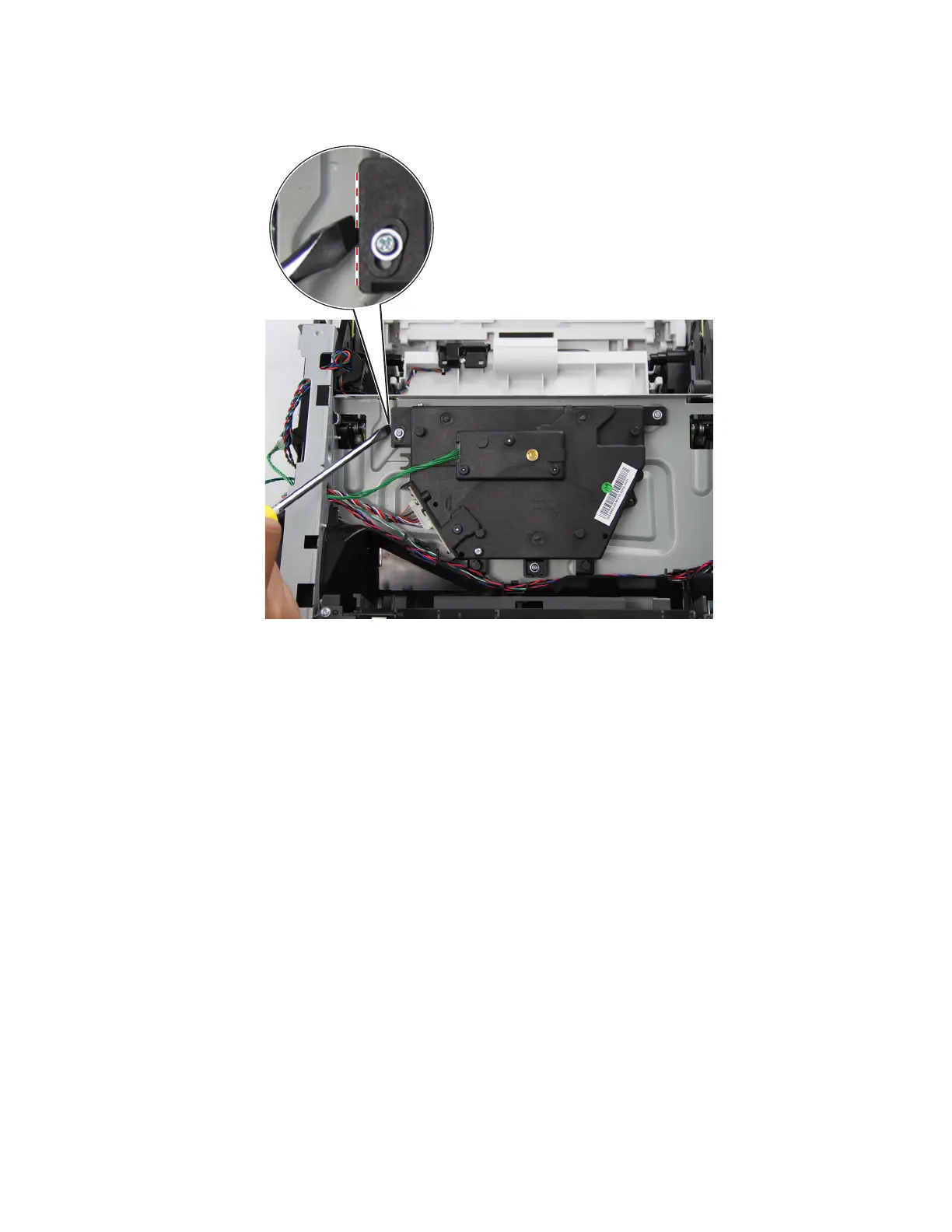

5 Using a small, ﬂat-blade screwdriver or a sharp pencil, mark the location of the printhead on the printer

frame.

6 Disconnect the printhead cable from the controller board.

7018

Parts removal

303
