Lexmark MB2650 - Page 353

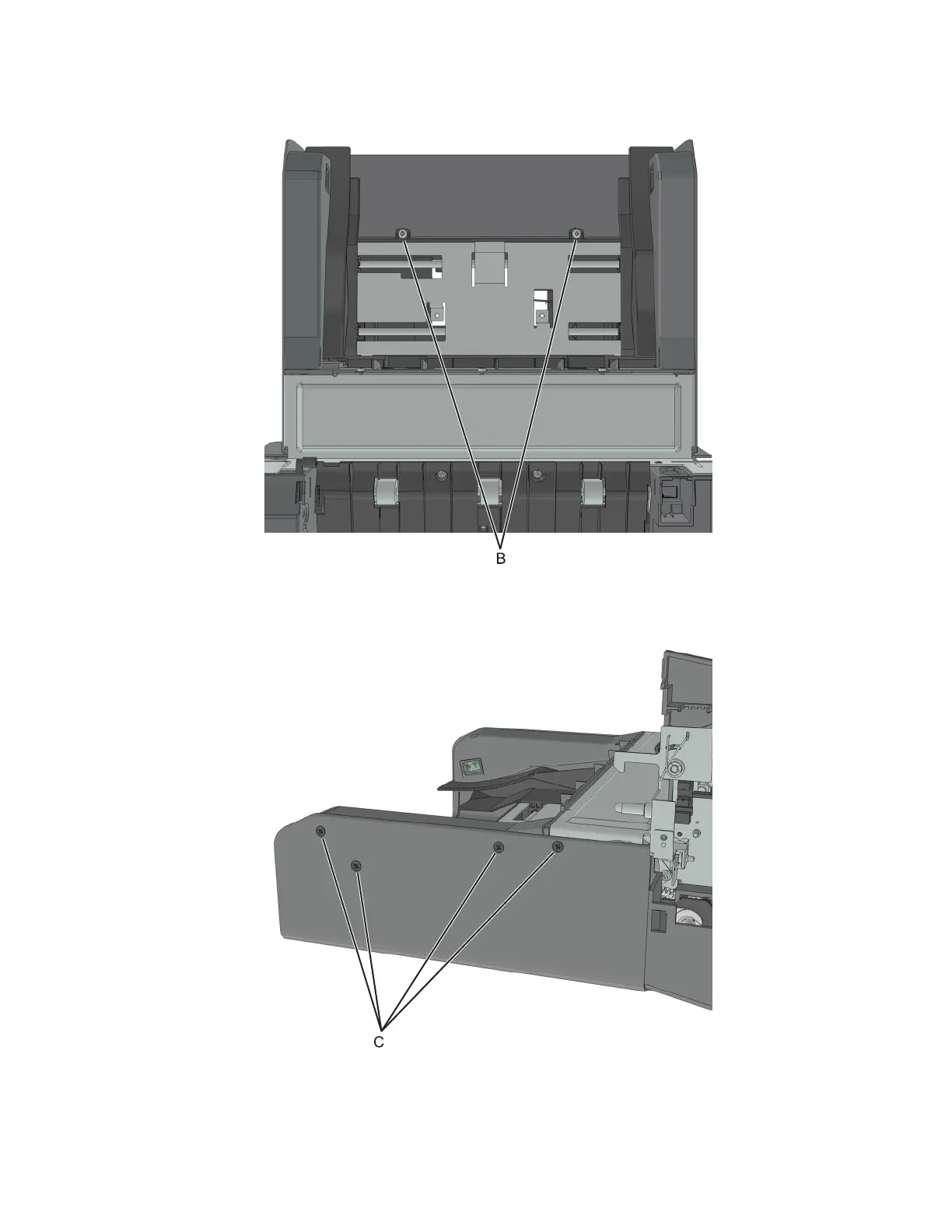

7 Remove the two screws (B) under the cover.
8 Remove the four screws (C) from the left side of the cover.
9 To access the sensor, release the sensor cover from the left side of the top cover.
7018
Parts removal
353
