D. UNDER THE HOOD (Conti nued)
72
2007MY LS460L/LS460
3. Turn on the headlight and
make sure that the cutoff line
falls within the specified area,
as shown in the illustration.
Hint:
D Since the lowïbeam light
and highïbeam light are a
unit, if the aim on one is
correct the other should be
correct. However check
both beams just to make
sure.
D Alignment distance is 32.8
ft.:
The cutoff line is 5.24 in.
above and below the H
line as well as left and
right of the V line with
lowïbeam (SAE J599).
D Alignment distance is 9.84
ft.:
The cutoff line is 1.57 in.
above and below the H
line as well as left and
right of the V line with
lowïbeam (SAE J599).
D Alignment distance is 32.8
ft.:
The cutoff line is 5.24 in.
above and below the H
line as well as left and
right of the V line with
highïbeam (SAE J599).
D Alignment distance is 9.84
ft.:
The cutoff line is 1.57 in.
above and below the H
line as well as left and
right of the V line with
highïbeam (SAE J599).
D Alignment distance is 32.8
ft.:
The cutoff line is 3.43 in.
below the H line with low ï
beam.
D Alignment distance is 9.84
ft.:
The cutoff line is 1.02 in.
below the H line with low ï
beam.
D12cï3
LS10096

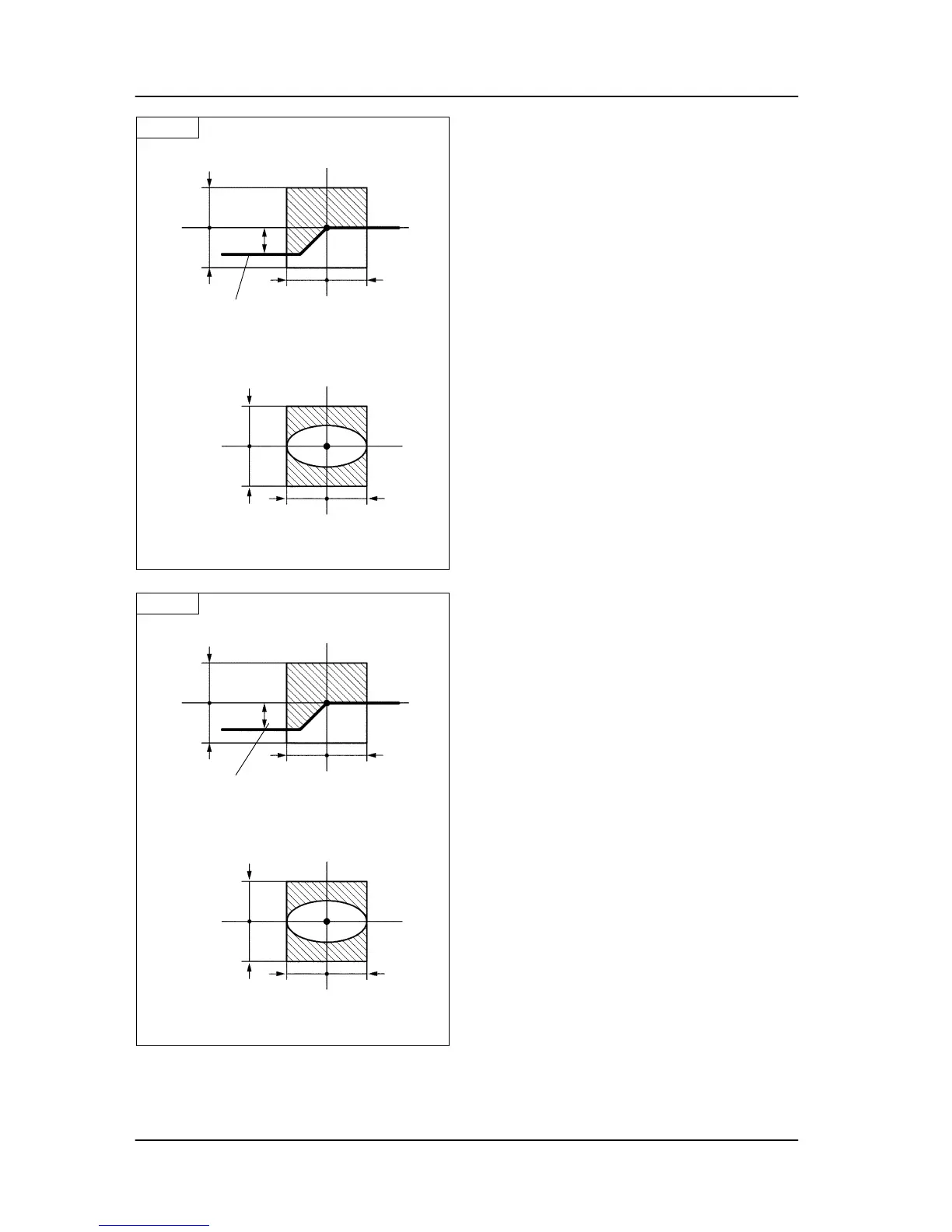

Aligning distanc e is 32.8 f t:
VRHLineVLHLine
HLine
5.24 in.
5.24 in.
5.24 in. 5.24 in.
3.43 in.
Low Beam:
Preferred Cut off Line
VRHLineVLHLine
HLine
5.24 in.
5.24 in.
5.24 in. 5.24 in.
High Beam:
D12cï3
LS10097
Aligning distance is 9.84 ft.:
VRHLineVLHLine
HLine
1.57 in.
1.57 in.
1.57 in. 1.57 in.
1.02 in.
Low Beam:
PreferredCutoff Line
VRHLineVLHLine
HLine
1.57 in.
1.57 in.
1.57 in. 1.57 in.
High Beam:
