Installation
40
300554859_002_C0 - 11/2016 - © Leybold
3.10 Connect a Flange Heater
For TURBOVACs with CF flange
If pressures in the range of 10
-8
mbar or below are to be devel oped, the vac-
uum chamber and the components installed therein will have to be baked
out. In addition, the TURBOVAC can be baked out using the flange heater
provided for this purpose.
Connect the flange heater to the TURBOLAB at X208. It can be switched on
manually at the switch above.
Information on baking out is also given in Section 4.7.

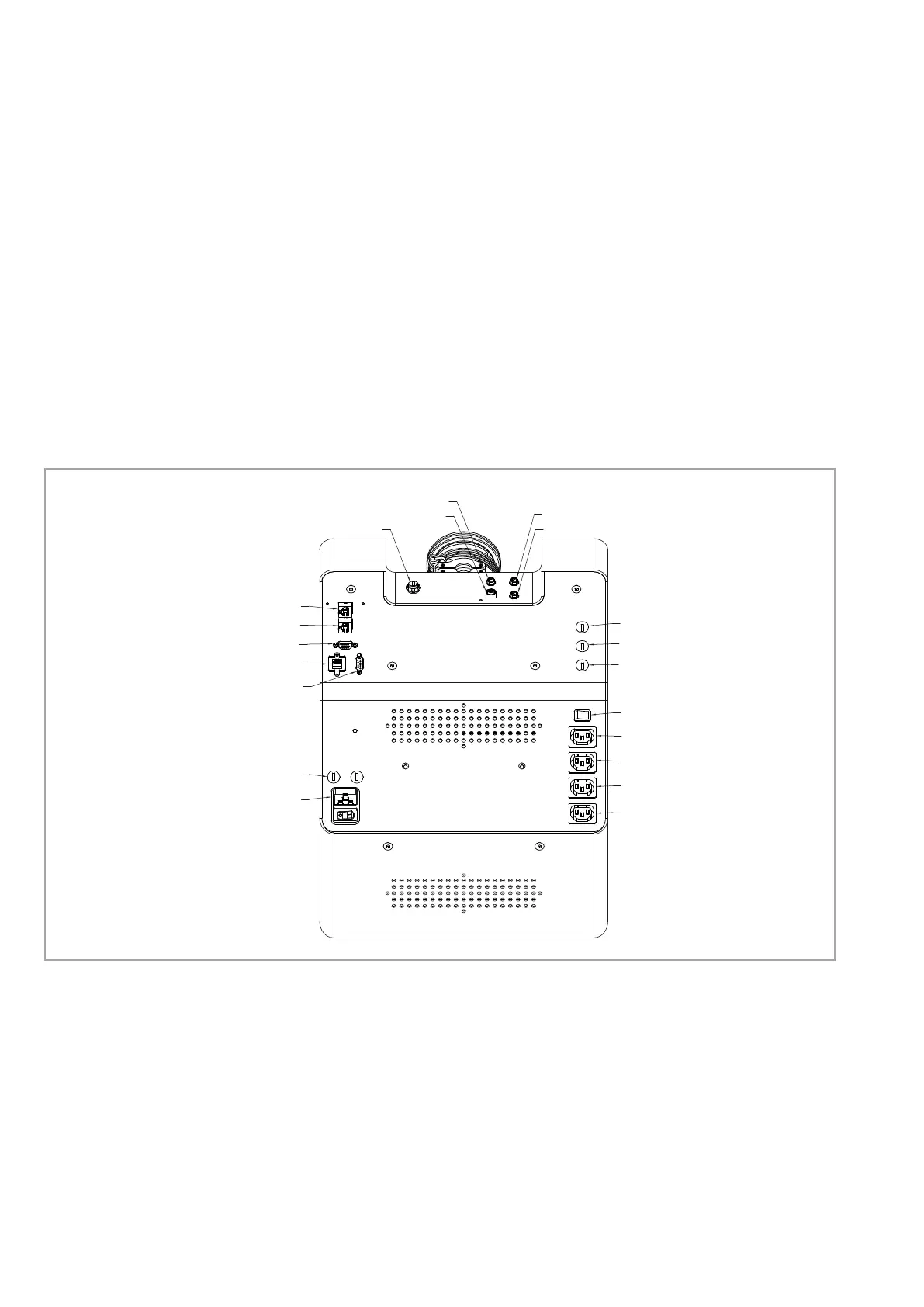

Fig. 3.14 Electric connections, fuses and switches (bottom view onto TURBOLAB 80, 90, 250, 80 Cart, 90 Cart and 250 Cart)
TPU (F5) 2AT
FV DC (F4) 8AT
TMP (F3) 10AT
HEATER (S207)
HEATER (X208)
AC OUT (X209)
FVv AC (X210)
FV AC (X211)
ETH (X150)
REMOTE (X1)
TMP COM.
GAUGE2 (X102)
GAUGE1 (X101)
MAINS (X20)
MAINS (F1/2) 16AT
TMP (X11)
FAN (X205)
PURGE (X204)
VENT (X203)
FV DC (X206)
