Operation
51
300554859_002_C0 - 11/2016 - © Leybold
4.4.2 Function Codes of the Accessory Connections
The start command always relates to the start command for the turbomole-
cular pump.
In case of a setup switch-on delay for the turbomolecular pump start, the
backing pump is switched on without taking this switch-on delay into
account (in case of a corresponding function code).
The respective accessory output can be configured through the submenu
“Accessories” indicated on the display or by the web server.
Function X205 Fan
Function
code Function
0 Always off The output is always disabled
19 Always on The output is always enabled
28 Pump is turning Default: The output is set when the pump is turning
29 frequency dependent The output is set when the frequency exceeds the upper limit.
When the frequency drops below the lower limit, the output is
reset again.
adjustable parameter: upper limit
adjustable parameter: lower limit
30 bearing temperature dependent The output is set when the bearing temperature exceeds the
upper limit. When the bearing temperature drops below the
lower limit, the output is reset again.
adjustable parameter: upper limit
adjustable parameter: lower limit
Ausgang
T
Untere Grenze
Obere Grenze
Zustandsdiagramm für Funktionscode 24, 29, 30, 39
Wird obere Grenze = untere Grenze eingestellt, schaltet
der Ausgang bei Überschreiten des Wertes,
und schaltet wieder aus bei Unterschreiten des Wertes.
Ausgang
T
Obere Grenze
=
Untere Grenze

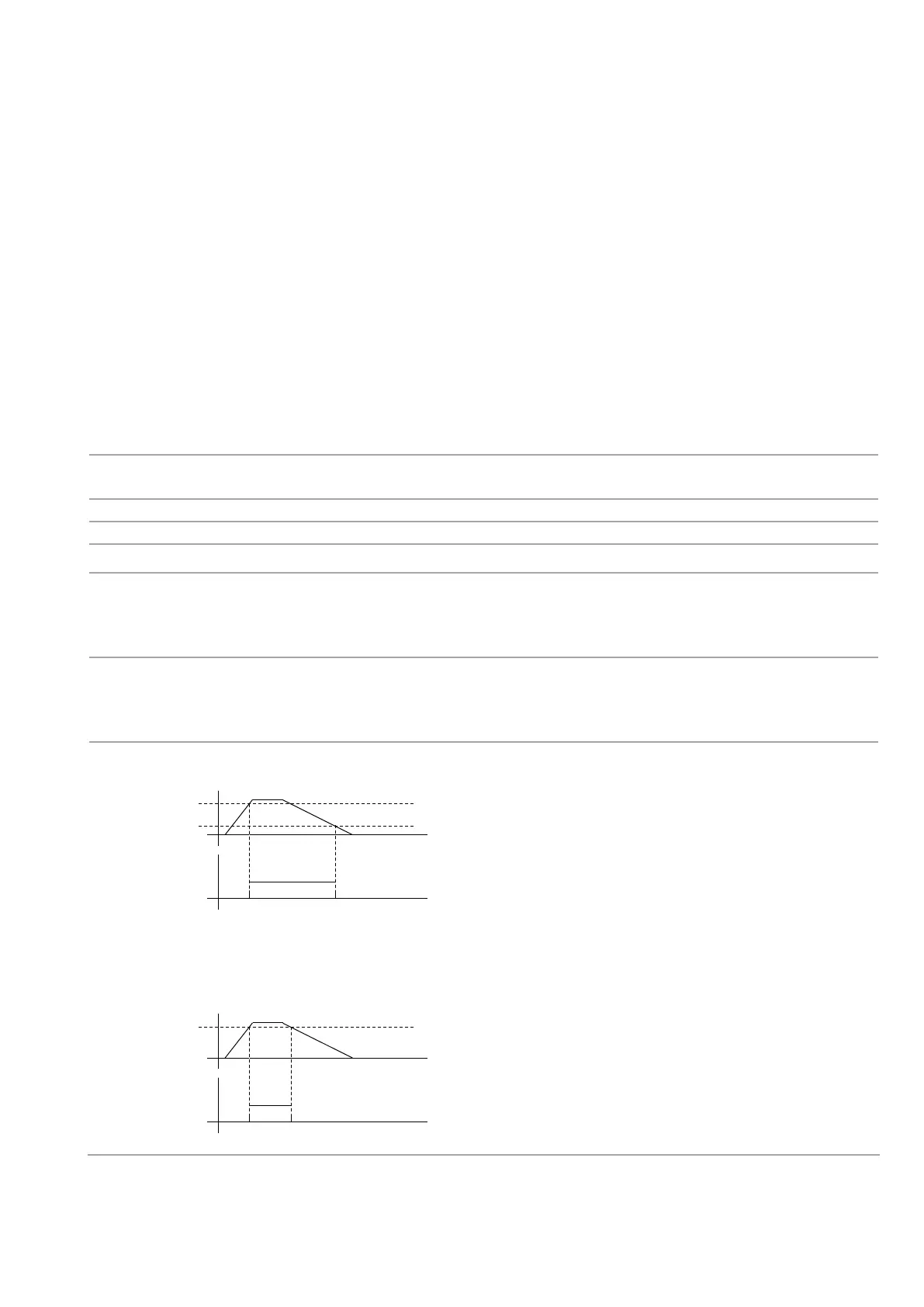

State diagram frequency dependent/bearing temperature dependent (29, 30)
Output
Upper limit
Lower limit
Output
Upper limit =
lower limit
When upper limit = lower limit is set up then the output
switches as soon as the limit is exceeded and it switches
off again when the value drops below the limit.
