Installation
41
300554859_002_C0 - 11/2016 - © Leybold
FV AC (X211)
FVv AC (X210)
AC OUT (X209)
HEATER (X208)
HEATER (S208)
TMP (F3) 10 A
FV DC (F4) 8 A
TPU (F5) 2 A
MAINS (X20)
MAINS (F1/2) 16 A
TMP (X11)
FAN (X205)
VENT (X203)
PURGE (X204)
FV DC (X206)
ETH (X150)
REMOTE (X1)
TMP COM.
GAUGE 2 (X102)
GAUGE 1 (X101)
3.11 Connect a Gauge
Two gauges can be connected to the TURBOLAB. Three gauge types are
supported by the TURBOLAB (PTR90, TTR91, TTR101). Use gauge ports
X101 & X102 for connecting gauges.
3.12 Connect a PC/Mobile Device
Use the RJ-45 Comm. port to connect a PC and use the web server inter-
face.
In order to be able to operate the pump system through the Ethernet inter-
face, the control hierarchy in the display must be changed to X1 Ethernet.
Otherwise, it will only be possible to read parameters.

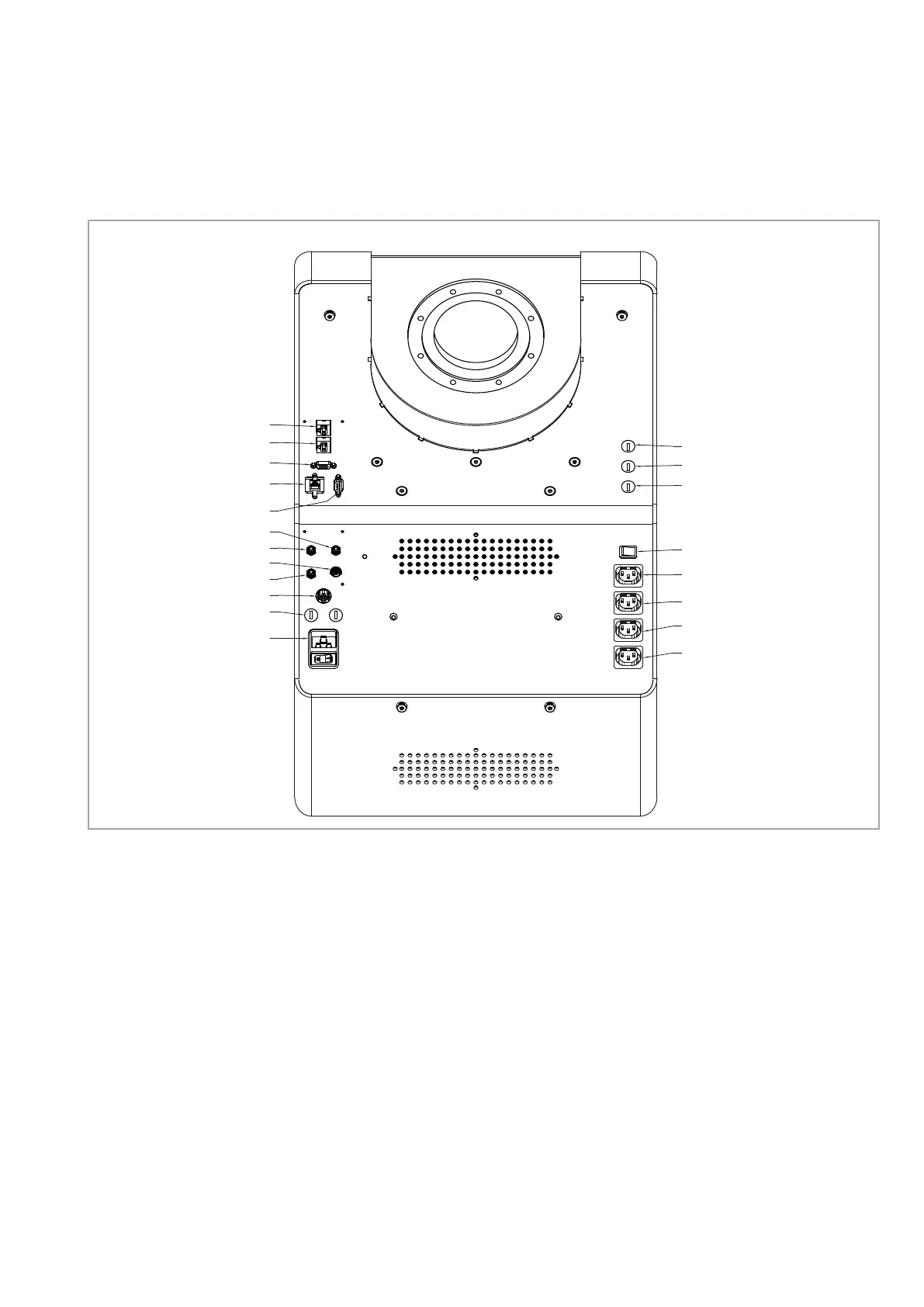

Fig. 3.15 Electric connections, fuses and switches (bottom view onto TURBOLAB 350/450 und 350/450 Cart)
