LEYBOLD TURBOLAB 80 User Manual

Operation
47
300554859_002_C0 - 11/2016 - © Leybold

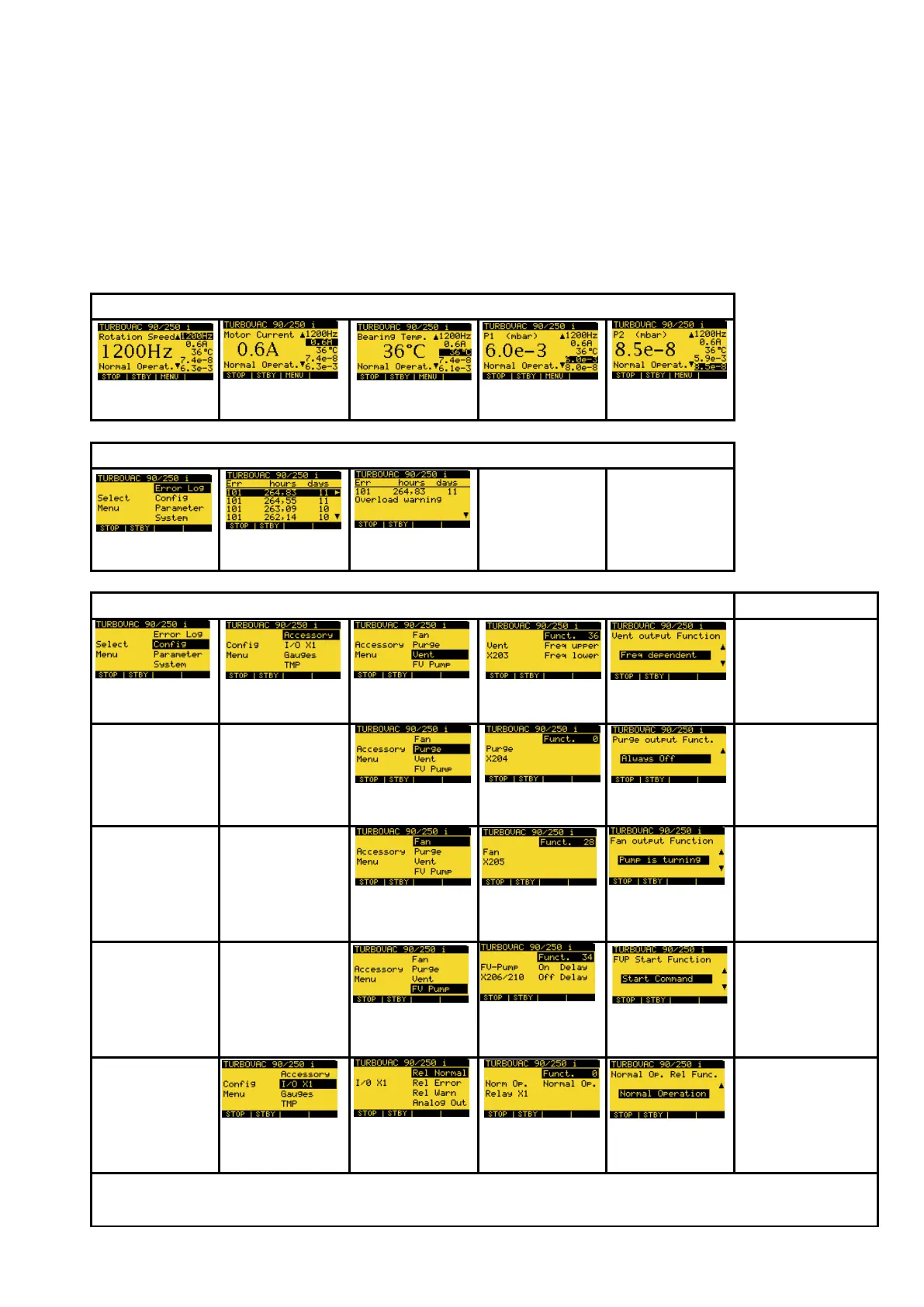

MainScreen
Turbopump speed
Turbopump motor
current
Turbopump bearing
temperature
Gauge 1 Gauge 2
Errorlog
Error log of the
turbopump
Error history of the
turbopump
Error log details
AccessorymenuandX1 Description
Configuration menu Configure accessories Venting valve
Venting valve:
Change configuration
Venting output function:
frequency dependant
Purge gas valve
Purge gas valve:
Change configuration
Purge gas valve output
function: always off
Fan
Fan:
Change configuration
Fan output function: fan
is running when the
pump turns
Backing pump
(Forevacuum pump)
and safety valve
Backing pump: Change
configuration
Backing pump output
function: starts with
start command
Configure X1 Relay normal operation
Relay normal operation:
Change configuration
Relay function: Relay
switches at normal
operation
Selection for the venting
valve output function
X203.
Selection for the purge gas
valve output function X204
Selection for the fan gas
valve output function
X205.
Selection for the backing
pump output function
X206. Corresponds with
X210 & X211
Selection for the relay
normal operation on the
X1 interface
The limit values may be changed in the respective configuration menu for the accessory output. Shown here are the default settings. The individual
functions for the accessory outputs are described in one of the following chapters. To simplify the diagram, setting up of the relay errors, warnings and
the analogue output is not described here.
4.4 Operation
4.4.1 Menu
