LEYBOLD TURBOLAB 80 User Manual

Operation
48
300554859_002_C0 - 11/2016 - © Leybold

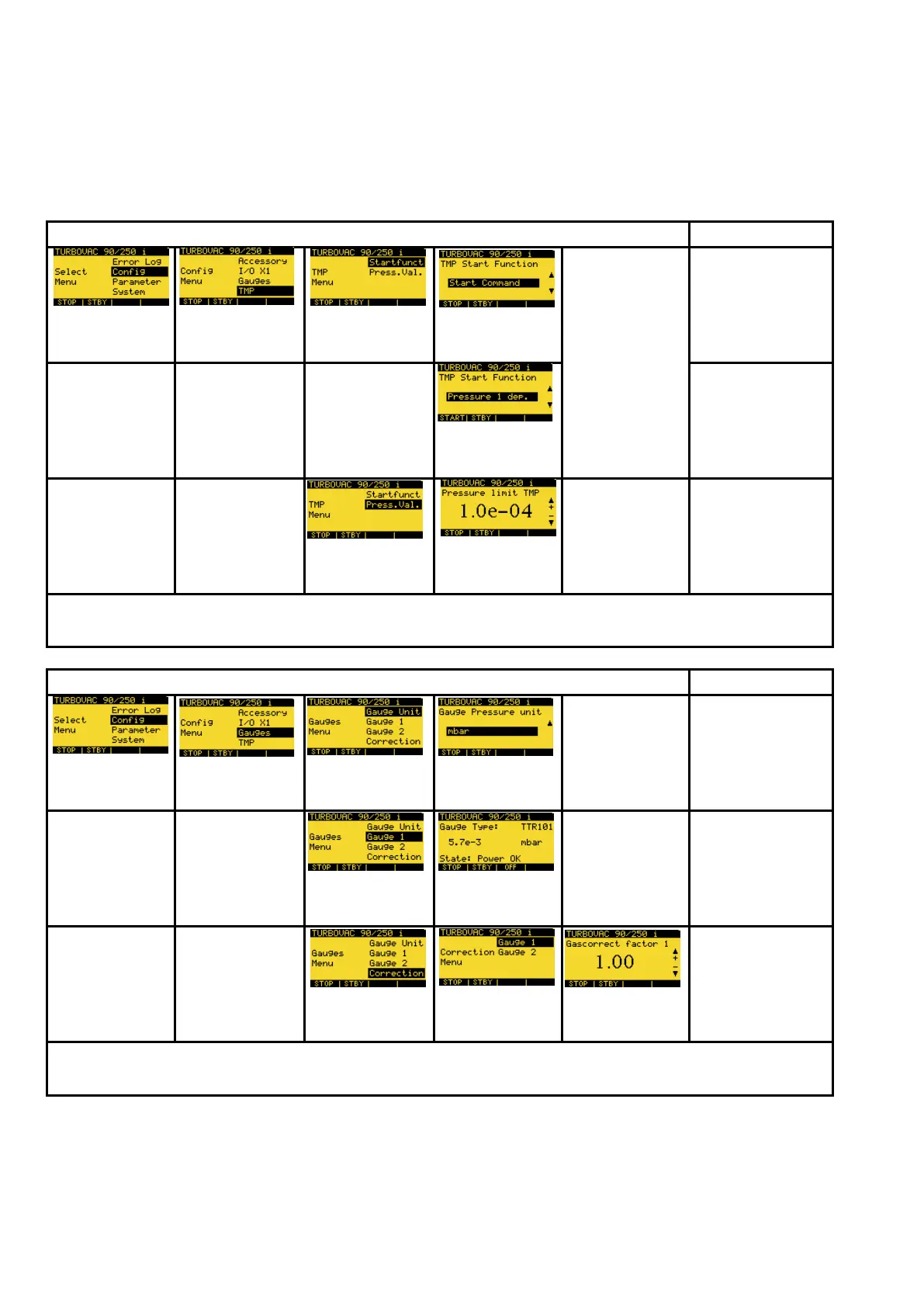

Turbopumpmenu Description
Configuration menu Configure turbopump
Configure turbopump
function
The turbopump starts
at start command
The turbopump starts
pressure dependant
Configure pressure
value
Change value
Gaugesmenu Description
Configuration menu Configure gauges Setting the unit
Gauge connection
X101
Detailed information for
the gauge
Gas correction factor
Setting the Gas
correction factor for the
gauge at X101
Change value
Further functions for the turbomolecular pump are described in one of the following chapters.
You may change between
mbar, Torr and Pascal. The
setting is carried over to
the main screen.
Display of type, measured
value, unit of
measurement, status.
Through “Off” (F3) the
vacuum gauge head may
be deenergised.
The gas correction factor
must be set up according
to the information given in
the Operating Instructions
for the respective vacuum
gauge head.
Further functions for the turbomolecular pump are described in one of the following chapters.
The turbomolecular pump
starts with the start
command. The value
entered under “Press. Val.”
is not used here.
The turbomolecular pump
starts depending on the
pressure provided the
pressure at vacuum gauge
head X 101 has dropped
below its threshold.
Setting up the limit value
for pressure dependent
switching on of the
turbomolecular pump.
